FAV (TM) Flare Fittings, Jic Fittings

We offer 37 degree flare and jic fittings.
37 degree flare fittings come in variety of styles , shapes and sizes and work on high pressure hydraulic applications . These hydraulic fittings are also known as 37 degree flare fittings or jic fitting or flare fitting.
variety

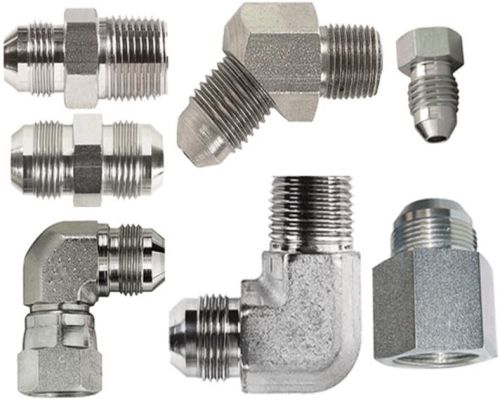

a wide array of configurations are available such as straight connectors, elbows, union, tees, and crosses , adapters and various customized machined components of various styles , shapes and sizes. If you have special drawings send us to pionlace@vsnl.com
how does pioneer 37 degree flare fittings work ?
37 degree flared tube fittings comprises of three precision machined components like body, sleeve and nut. Main construction consists of three pieces: the body, sleeve & nut. The tube end is flared to 74
degrees included angle and held in between the main body nose and the sleeve nut which is on top of them, thus resulting in a very effective leakproof joint, full flow connection in process tubing.
materials available
37 degree flare fittings are available in stainless steel, brass, steel, monel, high duty bronze, hastelloy c, incoloy, inconel 600.
manufacturing process
37 degree flare fittings are manufactured from cold drawn bar stocks and all angular fittings from neat forgings. Our focus on forged construction results in close grain structure and also gives extremely high reliability to our hydraulic fittings eliminating all possibilities of leakage and can withstand high pressures and high temperatures.
Application
jic fittings is used in almost all application that involve fluid power for instrumentation and process control. Pioneer hydraulic fitting has been specifically designed for use on instrumentation, process and control systems, together with equipment employed in chemical, chromatography, petroleum,power generation and pulp & paper plants.
compatibility
37 degree fitting body can take both metric and inch tubes just by change in sleeves. We use same nuts so the cost of the component and inventory storage comes down drastically. Also are our machined components are interchangeable with international brands,
advantages of pioneer 37 degree flare fittings?
1) variety of styles , shapes and sizes
2) low torque operation
3) very effective seal between the fittings and the flared tube
4) good vibration resistance.
