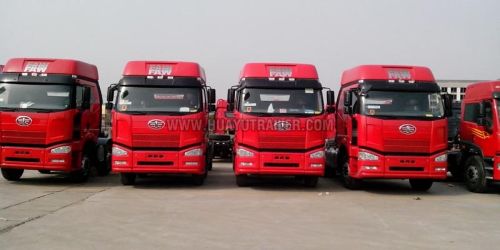

Faw Tractor Truck

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Designed exclusively for a wonderful customer experience, the Faw Tractor Truck promises maximum speed of 101 km/hr. The 4 stroke direct injection diesel engine makes our Faw Tractor Truck stand apart from the rest of the goods that are available in the market today. The drivers cab is equipped with stereo and music player compartments. Contact us if you are interested.

View More Details

Send Enquiry

Details

FAW 6x4 Tractor head
Engine	Maker: FAW
	Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & intercooling
	Engine model: D10.38 EURO III
	Max. output: 380hp@2200rpm
	Equipped with Silicon oil fan
	Engine Brake: EVB
	Brake power: 230-250hp
Clutch	Φ430B pull-type diaphragm clutch
WABCO	ABS+ASR+EBL+TPM
Transmission	18710 (mechanical type)
Front Axle	HF7 road-use front axle, 7 tons loading capacity, plate (disc) brake
Rear Axle	strengthened axle, double reduction driving axle)
Rear Axle	Ratio: 3.73 (4.22 are optional)
Chassis	Front overhang (mm): 1540
	Rear overhang (mm): 845/870
	Wheel base (mm): 3225+1350
	Front track (mm): 2022
	Rear track (mm): 1830/1830
Steering	ZF8098 integral type power-steering
Wheel & Types	315/80R22.5 tubeless tire
Wheel & Types	Spring suspension: 4/12, 9/12,4/-
Driver's cab	A7-P , low roof with one sleeping bed. Air seats.. Electricwindow lift. VDO music system (CD with USB interface). Double sleepers. Electric cab lifting system. BEHR A/C.
Dimensions in (mm)	Dimension(mm): 698524963850
	Max speed: 101 km/h
	Max. gradeability(%): 25
	Approach angle: 15 degree
	Departure angle:46 degree
	5th wheel: 3.5"
weight	Kerb. mass: 8800kg
	Total mass: 25000kg
	Max towing load:40000kg
	Fuel tank capacity (L): 400L Aluminium alloy
	Fuel consumption (L/100km): 36
