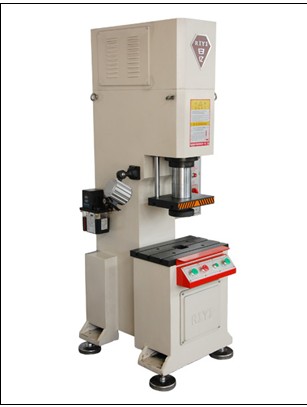

FBY-SV Series Of Servo Press Machine

`Micro-computer Control Electro-hydraulic Servo
�Product feature
��1. The C-body design, use small space and easy to operate.
��2. Power provided by the servo motor, the pressure is stable and fast response.
��3. Up and down movement and pressure are Closed-loop control, so has high precision.
��4. Using screw drive the head move up and down, not only energy efficient and environmentally; but also no Hydraulic system�s contamination.
��5. Display the actual press curve ,can be arbitrarily set the desired pressure range of products, testing of the product is qualified or not.
��6. Infrared protection can be configured (Optional).
��Technical parameters
Specifications

FBY-SV05
Theoretical output pressure
KN
50 (5t)
Max stroke
mm
150
Max Opening Height

mm
400
Throat depth
mm
200
fasting forward
mm/s
0�170
Feeding speed
mm/s
0�125
Return speed
mm/s
0�170
Precision
N
2�
Repeated positioning accuracy
mm
±0.02
The size of the working table
mm
520�310
The height of the working table
mm
640
Power of motor
kw
6
Power(3ΦAC,50Hz)
V
380
Weight
kg
1260
