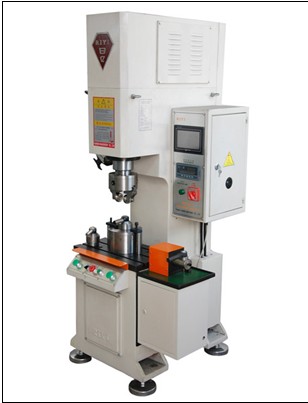

Fby-x Series Of Hydraulic Riveting Machine

1.The C-body design, overall casting make the machine high rigid.
2. Professional design, suitable for various parts of the flange riveting, such as ball, silicone oil clutch. etc.
3. Frequency power head,adjusting speed arbitrary, wide speed range.
4. Safety designed, hand operation, with emergency stop button and jog up and down function.
5. Adopts PLC and touch screen, easy to operate.
6. Downward movement with the fast and Feeding speed�the fast forward improve work efficiency�feeding speeds can be adjusted to protect the mold, improve product quality.
7.Equipped with a torque detection device to facilitate the detection of spin riveting quality (Ball special purpose machine).
8.Key and Foot Switch two cycle start modes.
Technical Parameters
Theoretical output pressure 50KN(5t)
Rated oil pressure 13Mpa
Max stroke 150mm
Max Opening Height 300mm
Throat Depth 200mm
Fast-forward speed 115mm/s
Feeding speed 10~80mm/s
Return speed 90mm/s
The size of the working table 520 X 310mm
The height of the working table 700mm
Sprin riveting motor power 2.2Kw
Sprindle motor speed 1000rpm
Power of motor 2.2kw
Power(3ΦAC,50Hz)380V
Weight 1400kg
