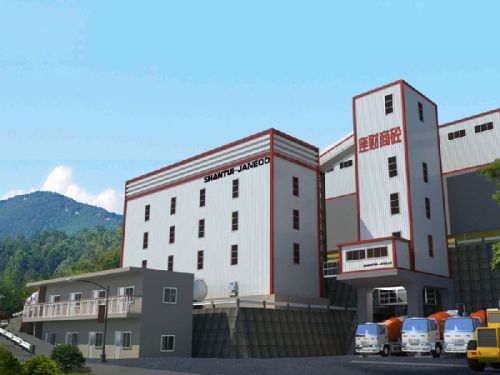

FC Series Ready-Mix Concrete Batching Plant

The use of oblique belt conveyor, the venue layout flexibility; aggregate silting, the structure of majestic, high production efficiency; high precision measurement and efficient mixing technology, to maximize the quality of concrete. Product use: For commercial production and supply of concrete, large-scale construction projects or large and medium-sized concrete prefabricated products factory. Technical parameters Model HZS120FC HZS180FC HLS180FC HLS240FC Theoretical productivity(m³/h) 120 180 180 240 Mixer Model JS2000 JS3000 JS3000D JS3000D Drive power(kW) 2X37 2X55 2X55 2X55 Discharge capacity(L) 2 3 3 3 Max. agg. size(Gravel/Pebble mm) 60/80 60/80 60/80 60/80  Weighing range and accuracy Agg. kg 4X2000±2% 4X3000±2% 4X3000±2% 4X3000±2% Cement kg 1000±1% 1500±1% 1500±1% 1500±1% Flyash kg 400±1% 600±1% 600±1% 600±1% Water kg 400±1% 600±1% 600±1% 600±1% Additive kg 40±1% 60±1% 60±1% 60±1% Total power kW 198 270 360 380 Discharge height m 4.2 4.2 4.2 4.2 Company Profile Shantui Construction Machinery Co., Ltd. (Shantui) was founded in 1980. Shantui is one of the top 50 manufacturers of construction equipment in the world, and one of China`s top 500 manufacturers. Shantui`s name is synonymous with bulldozers in China, but today the company features the entire gamut of construction machinery,from Bulldozers and Trimming dozers,to Pipe Layers
