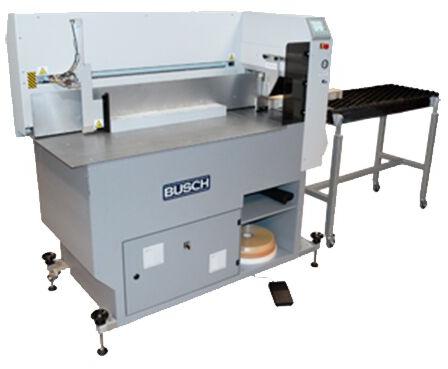

Feed Bander Machine

Fully automatic banding of product piles following guillotines or folding machines
Optimized product alignment
Intuitive touchscreen control
Easy tape reel exchange
For banding product piles with coated Kraft Paper Tape or Polypropylene Foil
High efficiency by automatic feeding of the product piles
Intelligent feed pusher generates the product row length for a high banding output
Pneumatic compression of the packages with adjustable pressure
Mobile bander on four castors for variable applications and electrical connection with one-phase A.C.
Available with delivery to the left (model ZFB 32 /75 L) or right side (model ZFB 32 / 75 R)
Optional available with mobile roller delivery
Optimized Product Alignment :-
• Ergonomic handling for left or right side delivery
• Optimal alignment by the solid cross stop
• Lateral stop moves automatically to the product width
Intuitive Touchscreen Control :-
• Enlarged SIEMENS touch panel with enhanced resolution
• Central input of all banding specifications
• Easy control of machine parameters
• User-friendly menu navigation
Easy Tape Reel Exchange :-
• Convenient insertion in between movable deflection rollers
• Automatic tape insertion
• Adjustment of the banding tension on the touchscreen
Banding with coated Kraft Paper Tape or Polypropylene Foil from the house of Gerhard Busch GmbH
Coated Kraft Paper Tape :-
• brown or white, reel length: 800 m
Polypropylene Foil (80 Fum) :-
• transparent, reel length: 1200 m
