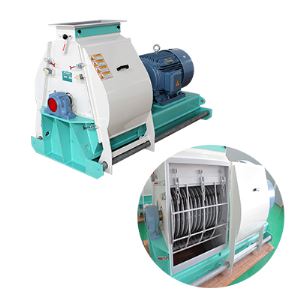

Feed Hammer Mill

Product description
1、unique feeding design, make the feeding easily;
2、the shell is welded by thick steel plate, the site in the crush room which connects to the materials all use the wearable and commutative parts and double wear plate;
3、the motor and rotor are installed in the same heavy-duty base, using coupling direct drive;
4、the rotor are checked by dynamic balance,and can work forward and reverse, the hammers are arranged symmetrically;
5、by changing the gap between hammer and the screen to achieve coarse and fines crushing
6、unique design, can fine grinding different kind of raw materials such as corn, sorghum, wheat, soybean crumbled cake-shaped material, even some high-fiber, high oil and high moisture content raw material.
Product specification
model swfp 66×40 swfp 66×60 swfp 66×80 swfp66×100
power(kw) 3745 7575 90110 132160
hammer number(pc) 40 64 88
128
diameter of rotor(mm) 660 660
660
660
main shaft speed(rm) 2970 2970
2970
2970
width of grinding chamber width(mm) 400 600
800
1000
hammer linear speed(ms) 102.58 102.58
102.58
102.58
dimension(mm) 1800×1340×1455 2115×1340×1455 2620×1340×1455
3020×1340×1455
weight(kg) 1950 1740~1780
1852~1992
2040
capacity(th)
3-8 4-9 5-13 7-18
