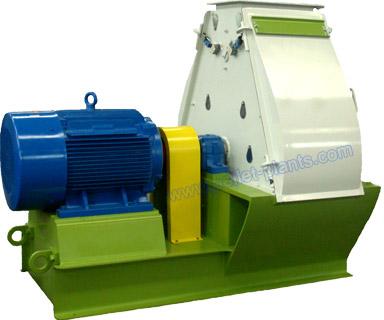

Feed Hammer Mill

We are offering feed hammer mill.
Application and features
1.own automatic feeding device and can adjust the quantity of feeding automatically.
2.it can convert coarse grinding to fine grinding through adjusting the clearance between the screen and beater.
3.the water drop grinding chamber can avoid circulation with high efficiency.
4.the right aspiration can make materials go through screen quickly, reduce grinding chamber temperature and increase output.
working theory
feed hammer mill is made of delivery device, hammers, screen, rod and rotor on which hammers are mounted. The hammers swing on the central rotor freely. The rotor spins at a high speed while material is sent into a feed hopper. The material is impacted by the hammers and thereby grinded and then discharged through screens in a selected size.
technology data
model fsp56*36 fsp56*40 fsp60*30 fsp60*45 fsp60*60 fsp60*75 fsp112*40
capacity(t/h) 2.5--5 4--7 2--5.5 5--9 6--10 8--13 12--22
diameter of rotor(mm) 560 560 600 600 600 600 1120
width of chamber (mm) 360 400 300 450 600 750 400
speed of hammers (m/s) 86 86 94 94 94 94 84
hammer qty(pcs) 20 24 24 44 48 60 40
speed of rotor (r/min) 2980 2980 2980 2980 2980 2980 1440
power (kw) 18.5/22 30/37 18.5/22 45/55 75/90 90/110 90/110
sieve hole size (mm): φ1.2,φ1.5,φ2.0,φ2.5,φ3.0,φ3.5,φ4.0motor: simenz.
