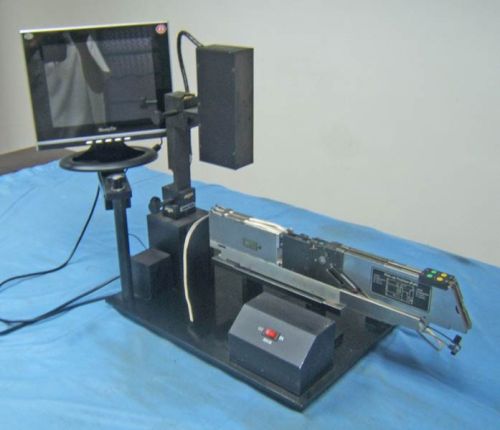

Feeder Calibration Jig

We are offering feeder calibration jig.
Product overview\r this product is used to confirm the tape feeders (feeder) spaced locations (adsorption sites) and adjusted with special equipment. This product uses ccd cameras and high-powered magnifying glass, observe the feeding through the display case, thimble and down movement and leverage wear, reduce rack cited poor from the butt problem, to improve the placement yield a good help. \r product features:\r * simple, compact and simple appearance.\r * x, y, h transmission in three directions are used precision screw drive, guide mechanism in each direction using two precision linear bearings and precision guide columns, to ensure reliable transmission and guiding precision.\r * ccd camera plus 50mm magnifying glass with led lighting to make the picture clearer.\r * manually driven feeder, simulation machine action, observe dynamic walking gear material situation.\r * equipped with standard calibration ruler to adjust the suction center
