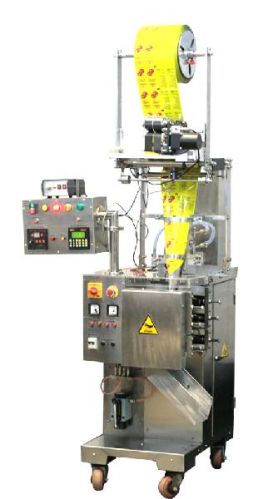

FFS 0520L Liquid Form Fill Seal Machine

Listing ID #2699494

We lay special emphasis on the packaging so as to ensure damage-free deliveries. For this, we make use of high quality material for wrapping our products. Our storage facility is capacious to maintain large stock. So, clients are free to approach us for urgent and massive requirements.
Applications :

• Suitable for shampoo, cosmetic creams, bath and massage oils, jam, sauces, etc, in the small volume range from 1 ml to 20 ml. Ideal for packaging these products for single-serve use for hotels, airlines, restaurants and fast food outlets, and for products to be sold through dispensing machines. This machine is particularly suited for packing honey sachets.
• It has an extremely small foot-print. One machine requires only 10 square feet - 1 square metre of floor space. Multiple installations of the FFS 0520L may offer a better production alternative in some cases, to using one multi-track machine, technically and financially.
• The machine has an electronic control unit for accurate sealing & cutting as per the sachet design. Sealing pattern available is 3-side seal or 4-side seal. The machine has an electronic photo-cell print registration unit for accurate sealing as per print area. Available with many optional advanced features such as microprocessor controlled sachet length, electronic speed control, automatic output sachet counting & batch creating, intelligent status warning devices for various parameters with shut-down and error reporting, etc.
• Available in single track or twin track.

Compliance with European Machinery Directives : The machine displayed on this page is classified within the relevant EU directives and further conforms with the specified EU harmonized standards and in compliance with the relevant directive, the technical file of the product displayed on this page is held within the EU with our authorised representative.
Outstanding Features :

• Simple operation. No training required for start-up, operation or maintenance. The detailed illustrated manual supplied with the machine is enough to DO-IT-YOURSELF!All contact parts like the forming tube, product hopper (reservoir), and liquid dosing pump executed in aisi 304 / 316L stainless steel.
• Internationally well-known reputed components used in the construction of the machine.
• Spares available on demand at reasonable prices. Technical support available around the year, around the clock!
• Supplied ready to use, mounted on movable castor wheels. It does not require any installation. Simply place it where you want and start production! This machine does not require any compressor, hydraulic system, or special electrical wiring.
• Available for 220 volts AC single phase / 110 volts AC single phase power supply.

• Various configurations available :

  • Low Cost Electro-Mechanical model with epoxy coated mild steel body cladding
  • Medium Range Electro-Mechanical GMP model with stainless steel body cladding
  • Full GMP top of the line model - electronic microprocessor controlled, all parameters changeable at the touch of a button, with all contact and non-contact parts in aisi 316 / 304 stainless steel as per GMP norms.

• Two inline printing option available :

  • Hot foil ribbon printing for printing 2 line alphanumeric dates / batch codes
  • Inline flexo-graphic printing device for producing sachets for salt, pepper and sugar for hotels and restaurants Personalised with name / logo printed in a single colour.

• Accurate filling and easy weight adjustment with a high precision volumetric cup filler.
• Easy-Change ™ Technology perfected by us is used on this machine. That means that you can change the film width, filled weight, sachet length - all within minutes!
• Silent operation - the machines cannot be heard while in operation even a short distance away.
• Electrical & mechanical protections available for compliance as per European / American standards.

Technical Specification :

• Pouch shape - 4- Side seal. Single track & Twin track.
• 3- Side seal. Single track
• End cut pattern - Straight / Zigzag / Easy Tear Notch / Perforation
• Packing Size Range - Repeat Length - 60 to 100 mm/90 to 160mm/ 120 to 200 mm
• Film Width - 60 to 240 mm
• Packed Weight - 5 ml to 20 ml
• Packing speed - Single track: 20to 50 sachets per minute
• Twin track: 40 to 100 sachets per minute
• Packing Material - Heat sealable laminated film like PET + PE, Foil + PE paper + Foil + PE , PET + Foil +PE, Paper+ PE etc.
• Electricals - AC 220V 50 Hz Single Phase, Motor - ½ Kw. Heaters - 4×350 watt /4 × 500 watt
• Machine Dimensions - L×W×H - 750 × 815 × 1880 (mm) (approx.)
• Crate Dimensions - L×W×H - 965 × 850 × 1800 (mm) (approx.)
• Machine Weight - 380 Kgs. Net/450 Kgs. Gross (approx.)
