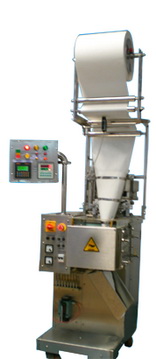

FFS 50100 Form Fill Seal Machine

We believe in utilizing government approved and reputed payment methods in order to maintain a high level of transparency and trust while a patron is paying for an order. The offered lot is precisely manufactured using superior grade material and in conformity with the industry standards.
Applications : This pouch packing machine is ideal for producing standard pouches of grocery products like sugar,salt, pepper, spices, cake mixes, soups, tea, coffee, drink mixes, detergents, cleaning chemicals, etc. in mainly pillow pack pouches from 50 grams to 100 grams packed weight
The machine has a choice of two Dosing systems :

• Volumetric cup filler for granules
• Auger filler for non free-flowing powders

Advanced Volumetric Cup Filler : The volumetric cup filler is PLC controlled and has a unique PAUSE function after every drop to ensure 100% filling accuracy at any speed.
Advanced Auger Filler:

• The unique inclined auger filler is PLC controlled and can be turned around, raised and lowered, making it easy to operate, clean and maintain. It has a micro-stepping stepper motor to ensure filling accuracy.
• The machine is equipped with advanced PLC Controlled features like warning device cum indicator for vertical & horizontal heaters, end of reel sensor and hopper level indicator with auto stop.
• All these modern techniques make the machine ideally suitable for a wide variety of industries needing sachet packaging.

Compliance with European Machinery Directives : The machine displayed on this page is classified within the relevant EU directives and further conforms with the specified EU harmonized standards and in compliance with the relevant directive, the technical file of the product displayed on this page is held within the EU with our authorised representative.
Outstanding Features :

• Simple operation. No training required for start-up, operation or maintenance. The detailed illustrated manual supplied with the machine is enough to Do-It-Yourself!
• Internationally well-known reputed components used in the construction of the machine.
• Spares available on demand at reasonable prices. Technical support available around the year, around the clock!
• Supplied ready to use, mounted on movable castor wheels. It does not require any installation. Simply place it where you want and start production! This machine does not require any compressor, hydraulic system, or special electrical wiring.
• Available for 220 volts AC single phase / 110 volts AC single phase power supply.
• Full GMP top of the line model - electronic microprocessor controlled all parameters changeable at the touch of a button, with all contact and non-contact parts in aisi 316/304 stainless steel as per GMP norms.
• Inline printing option available - hot foil ribbon printing for printing 2 line alphanumeric dates / batch codes
• PID automatic temperature controller makes the sealing temperature accurate.
• Electronic eye-mark registration device with stepping motor with ATM -19 controllers for sealing and cutting the outer bag on the packaging film eye mark.
• Safety features such as emergency stop switch, heater covers, sealer covers and forming collar covers as per European safety requirements.
• Silent operation - the machines cannot be heard while in operation even a short Distance away.

Technical Specification :

• Pouch shape - 4- Side seal / 3- Side seal / Centre seal
• End cut pattern - Straight / Zigzag / Easy Tear Notch / Perforation
• Packing Size - Repeat length: 130 to 200 mm 200 to 260 mm Film width: 50 to 240mm
• Packed Weight - 50 gm to 100 gm
• Peak Packing Speed - Up to 60 sachets per minute
• Packing Material Heat sealable laminated film like PET + PE, Foil + PE paper + Foil + PE , PET + Foil +PE,Paper+ PE etc.
• Electricals - AC 220V 50 Hz Single Phase, Motor - ½ Kw. Heaters- 4×350 watt /4 × 500 watt / 2×150 watt+2×500 watt
• Machine Dimensions - L×W×H - 750 × 815 × 1880 (mm) (approx.)
• Crate Dimensions - L×W×H - 965 × 850 × 1800 (mm) (approx.)
• Machine Weight - 380 Kgs. Net/450 Kgs. Gross (approx.)
