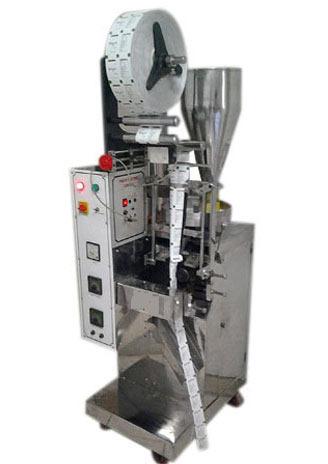

Ffs Pouch Packaging Machine

We offer ffs pouch packaging machine. Automatic vertical ffs machine with volumetric cup filler.
Technical specifications
product application
powder & granules like spices, glucose powder, oats, muesli, sugar, tea, peanuts, instant drink powder, mouth freshner, namkeen, puffs, kurkure, baby rings etc.
Filling range
50gm & 100gm.
Sealing type
center seal.
Roll width
to be conveyed in mm.
Pouch dimensions
to be conveyed in mm.
Feeding system
volumetric cup filler system.
Disc
online adjustable disc, ss- 304 (aisi) grade make.
Contact parts
ss- 304 (aisi) grade.
Cladding
stainless steel- 304
speed
approx. 30- 35 pouches per minute (depends on nature of the product)
main motor
½ hp, 220 v, 50 hz, single phase, crompton ge make
machine main body
ms fabricated.
Heater load
150 w x 2 nos
laminate
any continuous heat sealable laminate or paper poly in roll form.
Temperature controller
digital (radix make).
Photocell eye-mark
dual color.
Photocell registration system
digital.
Pouch counter
yes.
Electrical components
schneider make.
All electrical wiring
fenolex make.
Power consumption
1.5 kw.
Net weight
450 kgs (approx.)
caster wheels
pu.
Tool kit
yes.
