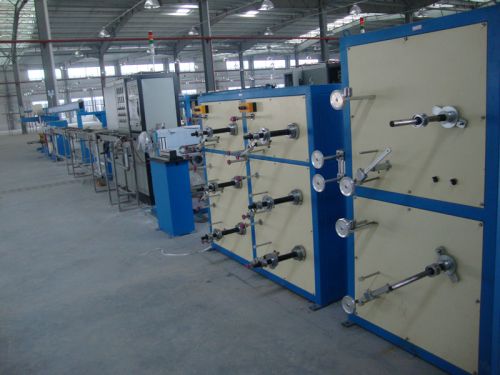

Fiber Cable Extruder Machine, Brand Name : HK

MOQ1 Set(s)
Brand NameHK
Pay-off tension of reinforcement 5N-20N
No of optical fiber pay-off reels4 reels
Take-up reels Specification PN400 reel and PN630 reel(central shaft hole diameter ø 56)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Brand NameHK
No of optical fiber pay-off reels4 reels
excess loss after extrusion1550nm<=0.2dB/km(single mold optical fiber)
extrusion material LSZH,PVC
production speed Max.70m/min(LSZH);100m/min(PVC)
reinforcement Specification ø0.4-ø1.0
Specification of reinforcement pay-off reels PN400 reels and ø254×ø116×ø180×ø32 reels
Specification of optical fiber pay-off reels 25km and 50km standard optical fiber reels
Heads no of reinforcement pay-off rack2 heads
Take-up reels Specification PN400 reel and PN630 reel(central shaft hole diameter ø 56)
Pay-off tension of reinforcement 5N-20N
structure speed Max.150m/min
Center height of machine 1000mm from background
Take-up tension 5-15N
Pay-off tension of optical fiber 0.4N-1.5N

We are offering fiber cable extruder machine.
1,machine application:
ftth cable extruder machine mainly applied in the production of tight buffered fiber, soft optical fiber cable, ftth terminal optical fiber cable(drop cable). the extruded sheath possesses the features of even diameter,smooth,fast speed, and low excess loss for optical fiber.
Features:
1,macine for ftth
2,pvc/lszh material
3,features of even diameter
4,low excess loss for optical fiber
5,good price
