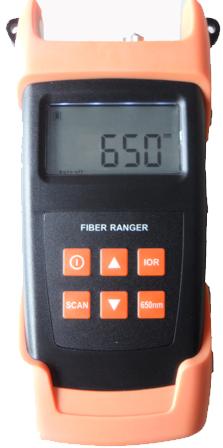

Fiber Cable Fault Locator

Techwin makes full use of otdr work principle to design and develop
the tw3304n fiber ranger and greatly improves the performance from
outside design to inside functions.
in hardware, it is lightweight, rugged, dustproof and waterproof.
in software, it has three brilliant functions.
one is automatic power control, which automatically test and adjust
the best power level according to the real test environment;.
secondly, it is automatic pulse width selection which automatically
select most suitable pulse width according to the real test distance.
thirdly, it has built-in 650nm vfl, with which it can detect the
fault from 1-10km and finally realize the one-dead zone test over the
full range.
features
list max 8 results of each test
easy to identify the faults location
built-in visual fault locator with optional output power
optional interchangeable connector
more than 10 hours long battery life
applications
testing the fiber length and locate the faults.
locates the distance between two connection points.
installation, maintenance and fault location of fttx and access
network.
