Fiber Connector

Superiortec manufactures a range of SC and LC connectors suitable for various applications.
SC connectors are used in most of the latest network applications and with less parts and a plastic body which offers an
economical option.
The LC connector is a small form factor fiber optic connector which helps to reduce the space on panels or outlets by 50%.
It’s cost effective as it simplifies movements, additions and changes. The LC connector uses a 1.25mm ferrule which is half
the diameter of the standard ferrule.
The SC connectors are available in singlemode both PC and APC and in multimode PC. The LC connectors are available in
singlemode both UPC and APC and in multimode UPC.
The connectors come with standard boots suitable for 900μm, 2mm cable diameters (SC and LC) and 3mm cable diameters
(SC).
The SC and LC connectors are available in standard colours including blue, green and beige.

FEATURES

Comply with IEC 61754-4, IEC 60784-14 and TIA 604-3 (SC connector) and with IEC 61754-20 and TIA 604-10-A (LC
connector)

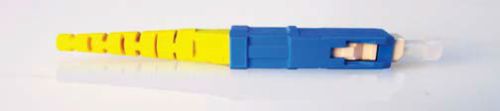

 The SC connector features a push-pull coupling mechanism for easy insertion and consistent connection and the LC
has a compact design based on RJ45 style interface

 Zirconia ceramic ferrule with high end Ultra Physical Contact (UPC) finish
Low insertion loss and back reflection
RoHS, REACH SvHC compliant
Available in standard colours and standard packaging
