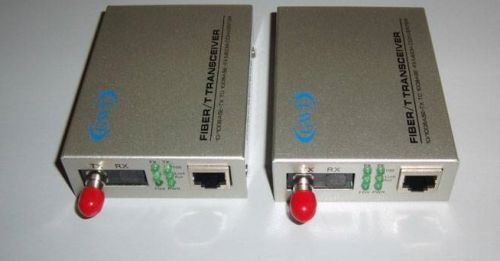

Fiber Ethernet Media Converter,single Mode

Description of Goods:
10/100base Tx + 100base Fx Wdm Media Converter Model No. Gwt10100s
　
applications:
　　gwt10100s Media Converter is 10/100mbps Fast Ethernet Converter. the Converter Mediates Between a 10/100base-tx Segment and a 100base-fx Segment. It is Primarily Designed for Large, Higher Speed/bandwidth Demanding Workgroups that Require Expansion of the Ethernet Network. It Can Extend the Conventional 10m Ethernet or 100m Fast Ethernet to 120km Max. Via the Fiber Optic Cable. It is High-performance, Cost Effective and Flexible Solution for a Wide Range of Applications in the Field of Lan Campus Network.
features:
◆auto Learning, Auto Updating, Auto Stocking and Auto Transmitting
　　◆ethernet 10base-t or 100base-tx to 100base-fx with Optical Fiber Cable as Medium
　　◆providing Hot Plug-draw Performance
　　◆using Particular Switch Chip Design with 1m Ssram Buffer,2k Mac Address List
　　◆full Duplex and Semi-duplex is Available with Auto Negotiation
　　◆have One Rj-45 Port and One Fiber Connector
　　◆providing 10mbps and 100mbps Auto Negotiation (reaching to 200mbps in Duplex)
　　◆good Optical Fx Characteristic and Tx Characteristic
　　◆providing Long-distance Tx and Tx Characteristic to Ensure Stability of Data Transmitting, Long Lifespan
　　◆providing Rj-45 Nic and Hub, Using Nic to Connect with Computer
　　◆working Time Without Any Trouble is More Than 50 Thousand Hours
specifications:
protocol ieee802.3 Ieee802.3u Ieee802.3x
fiber Port sc/st
copper Port one Port
network Cable 2pairs of Category 5 Utp (max:100m)
fiber Optic Cable smf：8/125,9/125,10/125μm (20/40/60/80/100km)
dimensions(wxdxh) 95x71x26mm
box Dimensions(wxdxh) 212*238*55mm (1 Pair/box)
weight 0.83kgs/box
input Voltage ac100v-240v to Dc5v
operational Temperature 0 ℃ ~70 ℃
store Temperature -40 ℃ ~80 ℃
humidity 5%~95% No Coagulation
