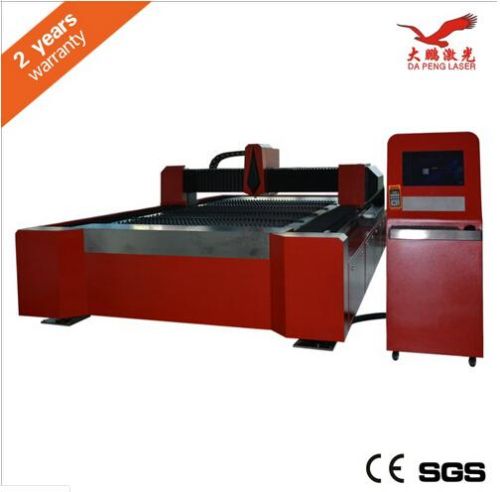

Fiber Laser Cutting Machine

We are offering fiber laser cutting machine.
Dp fiber laser cutting advantages:
1, cost saving on power consumption only 20-30% of co2 laser cutting machine under same power.
2, flexibility and precision cutting of simple or complex parts
3, adopts imported world brand fiber laserlife time over 100,000hrs
4, imported servo motor and gearing system ensure precision cutting
5, high quality cut with no extra finishing required
6, higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7, non contact cut which means no marks or contamination of the material
8, ability to cut virtually any sheet metal
specifications:
model dplc3015-500i dplc3015-1000i
medium of laser semiconductor pump continuous ytterbium doped fiber
laser wavelength 1070nm
laser output power 500w 1000w
cutting area(mm)(l×w) 3000mm×1500mm
max cutting speed(mmin) 18 mmin 24 mmin
min line width
cutting depth 0.2mm---5mm 0.2mm---8mm
driving way imported servo motor
tranmission way y-axis imported gear rack double driver,x-axis imported gear rack
operational temp range 10 ~ 40ºc
electrical requirements 380v50hz.60amp
cooling mode water cooled
continuous working time 24 hours
warranty: 2 years on laser source
weight about 3000kg
outline size(mm) 4270mm×2420mm×1750mm (l×w×h)
