Fiber Laser Marker

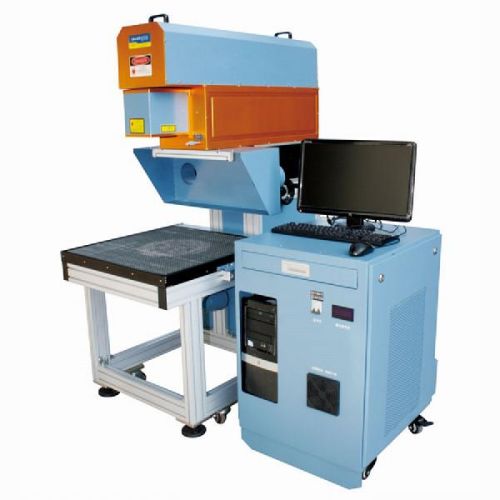

Co2 3d dynamic laser marking machine introduce
wuhan hae 150w co2 3d dynamic laser marking machine had made lots of improvement on the choice and design of device when considerating some reality factor: large power ,large marking scope, high strength in use,bad working environment .laser’s life is long,engraving and cutting speed is high.this system adot american co2 radio frequency metal laser ,use imported high-speed scan mirror and optical device. Machine’s performance is stable,support long-time continuous working
co2 3d dynamic laser marking machine specification
laser wavelength 1064um 1064um
laser power 150w 275w
marking scope 300*300mm--650*650mm(adjustable) 300*300mm--650*650mm(adjustable)
marking speed ≤7000mms ≤7000mms
min line width 0.02mm 0.02mm
repeated postioning accuracy ±0.003mm ±0.003mm
average power consumption ≤5.5kw ≤5.5kw
cooling way water cooling water cooling
working voltage 220v50hz 220v50hz
working environment temperature5℃-35℃；humidity30-80% 5℃-35℃；30-80%
applications:
materials: majority of nonmetal materials such as leather, cloth, wood, bamboo, paper, organic materials, acrylic etc.
