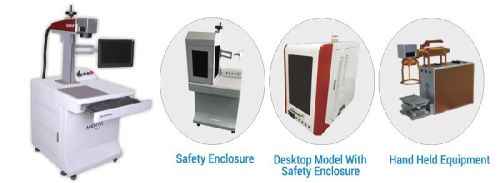

Fiber Laser Marker Machine Evan

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Features of Laser Marking Machine Evan EVAN laser provides a fast, flexible and efficient way to permanently mark a wide variety of materials such as Metals, Plastics, Ceramics, Silicon....

View More Details

Send Enquiry

Company Information

MEHTA CAD CAM SYSTEMS PVT. LTD.

Ahmedabad, Gujarat

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Features of Laser Marking Machine Evan

EVAN laser provides a fast, flexible and efficient way to permanently mark a wide variety of materials such as Metals, Plastics, Ceramics, Silicon etc.
Features
• First and last pulse equally useable
• Bitmap marking compatible.
• High repeatability/stability design.
• Status monitoring and safe shut down.
• High speed marking (MHz repetition rate).
• Long using time : the average using time more than 100000 hours
• Good stability and free maintenance : No need to maintenance for laser advice High quality gray scale marking

Advantages
Fiber lasers are up to ten times more efficient than traditional YAG or CO2 laser systems. Consuming little to no energy when not 2 active, the annual energy saving can attract government grant funded energy efficiency programs for industry. Fiber lasers have no optic to adjust or align, and no lamp to replace. Maintenance is minimal and so utilization and up-times are maximized. The lasers really are designed as shop floor industrial tools.

Model No	EVAN-10	EVAN-20	EVAN-30	EVAN-50	EVAN-100
Output Power	10 W	20 W	30 W	50 W	100 W
Wavelength	1064 nm
Power Adjustment	0 to 100%
Cooling	Air Cooled
Min. Line Width	Min. 0.03 mm (Depend on Material)
Max. speed	Max. 10000 mm/s (Max. Linear Speed)
Marking Depth	0.01~0.3mm (Depends on Material)
Min Character Height	0.5 mm
Marking Range	145 mm X 145 mm(Standard) Optional : 175 X 175 mm & 300 X 300 mm
Supporting Format	Support PLT, DXF, BMP File etc., Using SHX TTF Character Storage Directly
Single Pulse Energy (mj)	0.5@20KHz	1.0@20KHz	1.0@30KHz	1.0@50 KHz	2.0@50 KHz
Repetition Frequency Range	20-80 KHz	20-80 KHz	30-80 KHz	50-100 KHz	50-100 KHz
Output Power Stability	<3%
Beam Quality(M )	< 1.5		< 1.8	< 2.0
Pulse Width(ns)	< 100@20 KHz		< 130@20 KHz	< 200@50 KHz
Power Supply	AC 220 Volt
Max Power Consumption	120 Watt	200 Watt	250 Watt	300 Watt	500 Watt
Specifications are subject to change without notice
