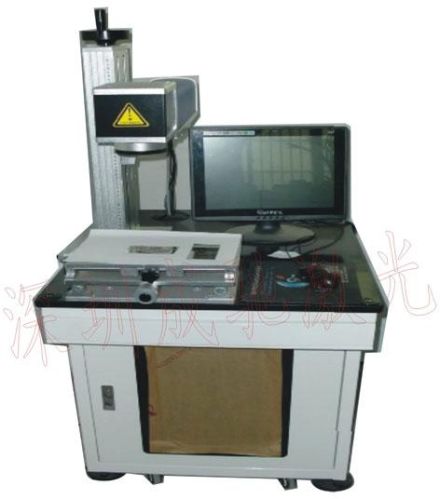

Fiber Laser Marking Machine

We are offering fiber laser marking machine.
Working principle：
laser with the overall structure of the integration, no light pollution and no power coupling loss, air cooling, with high efficiency, long life and no regular maintenance performance.
product features：
superior beam quality: cc-fm series fiber laser marking machine is better than the traditional solid-state laser marking machine, as the machine basic mold outputing, focusing spot diameter 10um.divergence angle is 1/4 of the semiconductor pump.particularly suitable for precision marking.
field of application：
it can mark all kinds of metal and non-metal materials, widely used in electronic and communication device, mobile phone, watches, glasses, automobile and motorcycle accessories, plastic buttons, hardware, tableware, hardware tools, instrumentation, medical equipment, sanitary ware, arts and crafts, pvc pipe, household computer, signs and packaging industries and so on .
low cost of production:
the electro-optical conversion efficiency reached 30%, machine power consumption is less than 500w, is a lamp pumped solid laser marking machine 1/10, save energy expenditure.
free maintenance:
laser don`t any maintenance.and don`t adjust or clean lens.
long service life:
laser diode is used as a pump source, the average working time can up to 100000 hours
high processing speed:
processing speed is 2-3 times of the traditional laser marking machine
technical parameters：
fiber laser marking machine
equipment type cc-fm10 cc-fm20
the laser power 10w 20w
the laser wavelength 1064nm
the range of power adjustment 10-100%
repetition frequency 20-100khz
beam quality 1.4-1.8
the photoelectric conversion rate 30%
the range of the mark 110*110mm(adjustable)
the minimum width of line 0.01mm
the minimum number of characters 0.2mm
repeat accuracy ±0.001mm
speed of mark line ≤8000mm/s
operating system win xp chinese operation interface, support plt, pcx, dxf, bmp file format, the direct use of shx, ttf font
electric demand 220v 50hz/60hz.
