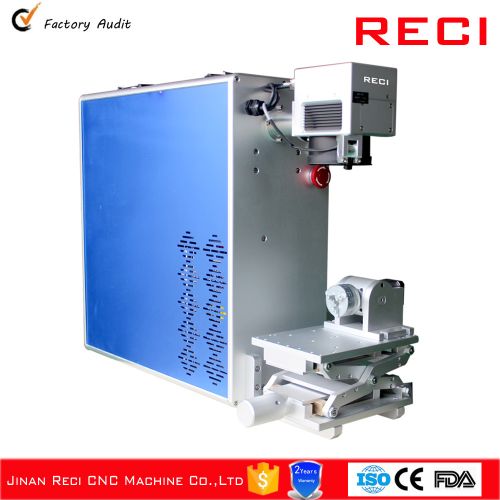

Fiber Laser Marking Machine, Brand Name : RECI

Product’s description
1、Compactness ，With the unique all built-in integration design, the optical, electronic and mechanical components are highly integrated, so that the whole machine weighs only 16kg. It can be called the smallest fiber laser marker in the world. In addition, it adopts imported fiber laser, and coupled with all air-cooled design, it need not external cooling devices.
2、High Durability ，The laser module has a long service life (greater than 100,000 hours; while the traditional lamp pump YAG can only serve hundreds of hours and the semiconductor can serve 20,000 hours or so).
3、Low consumption ，Due to the all air-cooled design, no consumable materials and free of maintenance, it has a low cost at use. Furthermore, it saves energy with a total power of 200W.
4、High speed，It applies imported high-speed galvanometer scanning head, which has greatly reduced the latency and increased the marking speed, which is 3 to 10 times of the first generation of traditional lamp-pumped marker and the second-generation of semiconductor marker (depend on the marking material).
Technical parameter
Model RC-B10FP20FP30FP
Laser power 10W 20W 30W
Laser wavelength 1064nm±10nm
Q-frequency 20KHz~100KHz
Divergence 0.3mard
Marking range 110*110mm 205*205mm290*290mm
Minimum line width 0.01mm
Minimum character 0.1mm
Marking speed 10000mms
Marking depth 0~0.5mm
Engraving line speed ≤7000mms
Repeatability accuracy ±0.001mm
Beam quality M2:1.2~1.8
Marking format Graphics,text,barcodes, two-dimensional code, automatically marking the date,batch number,serial Graphic format supported bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc
Unit power ＜0.5kw
Applicable materials
Metals (including rare metals), engineering plastics, electroplating materials, coating mate
