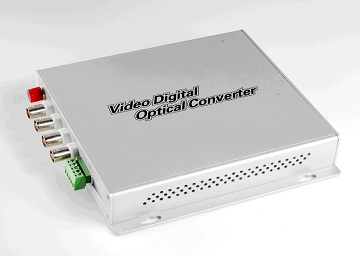

Fiber Multiplexer, Brand Name : Baudcom

We are offering 4channel video & audio fiber multiplexer.
The 4channel video&audio fiber multiplexer can provide 4channel video,1-4 channels audio,1-4channel data,one port ethernet,telephone and on-off over fiber transimission.
bd-dv40000 series video fiber multiplexer can simultaneously transmit 4 channels broadcast quality video,1-4 channels unidirectional or bidirectional audio,1-4chnnels unidirectional or bidirectional data,one port ethernet,telephone and dry contact over one multimode or single-mode optical fiber. These multiplexers are typically used in applications where the cameras have ptz capabilities. Plug and play design ensures the ease installation and operation. All the electronic and optical interface comply with international standards,customer need not to do any adjustments during installation. Led indicators are provided for instantly monitoring system status. Standalone or rack-mount video fiber multiplexer are available ,which is suitable for different working environment .
product characteristics
4channels encoded and non-compression broadcast quality video transmission
directly compatible with ntsc, pal, and secam cctv camera systems and support rs-232, rs-422, and rs-485 data protocols
support any high-resolution video signal
automatic compatible pal, ntsc and secam video system
1-4 channels audio (optional)
1-4 channels asynchoronus data (optional)
1 port 10100mbps ethernet (optional)
power supply and other parameter status indication, which can monitor the operation condition of system
support no-damage regenerative trunk of video
constant input optical power, and large dynamic range ,no electrical or optical adjustments required .
Industry-grade of operating temperature from -40 to 85 degree , which is applied to the different working environment
hot-swap supportted
stand-alone type or card-type installed in 19inch 2u or 4u rack-mount chassis.
dimensions :19.2(l)x17.3(w)x2.8(h) cm
operating voltage: dc5v (we will offer external power supply from ac96-240v to dc5v for each unit )
operating temperature: -40 to +85 degree
storing temperature : -55 to +85 degree
humidity: 0 to 95% non-condensing
mtbf : more than 105 hours
warranty : 3 years
application :
intelligent transportation system
connection of sub-network for surveillance center
highway video monitoring and control system
industrial closed circuit television surveillance
security monitoring and control system
tv program switching channel transmission
