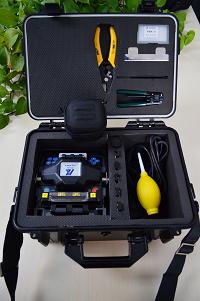

Fiber Optic Fusion Splicer

₹ 2.26 Lakh / 2800 2800 Set

MOQ1 Set(s)
Splice/heat programStored 40 groups, 80 groups of user-defined
Corrosion resistanceDevice components, spare parts and materials used meet corrosion requirements, fluid contamination from erosion
Splice loss evaluationHave
Tensile test2N
Supply TypeManufacturer
Preferred Buyer Location All over the world

Product Details

Return LossMore than 60dB
BatteryTypical Operating 220 (splice / heat shrink / thermal stripping) on a single charge 3h, can be reused 500 times
Screen4.3 in. color LCD, support Chinese and English display
Weight1.54kg (without battery), 1.82kg (including battery), including attachments packing gross weight: 5.38Kg
Operating environmentAltitude 0 ~ 4000m, 0 to 95% relative humidity, temperature -10 ℃ ~ 55 ℃, the maximum wind speed 15m / s
Corrosion resistanceDevice components, spare parts and materials used meet corrosion requirements, fluid contamination from erosion
Connecting time9sec(Typical time)
Size150D×130W×126H(mm)
Applicable Fiber CountSingle
Splice/heat programStored 40 groups, 80 groups of user-defined
Optical magnificationX / Y: 115 times, X, or Y: 230 times
Data interfaceUSB2.0
Applicable fiber diameterCladding diameter of 125μm, coating diameter 250 ~ 900μm
Applicable Fiber TypeSM，MM，DS，NZDS
Maximum storage5000 set of the latest record storage
Cladding diameter of 125μm, coating diameter 250 ~ 900μm0.01dB(SM)，0.01dB(MM)，0.04dB(DS)，0.04dB(NZDS)
Splice loss evaluationHave
Power Supply11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply
Storage Conditions0 to 95% relative humidity, temperature -40 ℃ ~ 80 ℃ (except battery), temperature -10 ℃ ~ 30 ℃ (battery)
Tensile test2N

We offer Fiber Optic Fusion Splicer.
Fusion Splicer ALK-88A is a Mini type Fusion splicing machine and have our own intellectual property right of fiber adjustment technology
It adopts advanced PAS Fiber adustment technology . Adopt four motors drive, have fiber adjustment function, it is not only used for FTTX project, but also can be used for the trunk line, it is a machine which is the smallest volume ,the lightest weight ,the most fast splicing speed
Features;
Hardnessï¼�The body is made from titanium alloy , and it has rubber protection function , quakeproof, waterproof, dustproof .
Fast: 7s fast splicing , 25s fast heating, support continuous heating , average efficiency improve 2ï½�3times.
Long lifetime : long life batteries ,200 fiber splicing ,no memory effect Lithium Batteries ,the fiber cleaver has 16 blade , long lifetime.
Convenience: convenient for maintenance.
Products Structure Introductionï¼�
Cooling Pallet
LCD
Replaceable Heating Unit
Heating Device
Windproof Cover
Fixing Ring
USB Port
Keyboard position
Protection Rubber
fusion splicer
