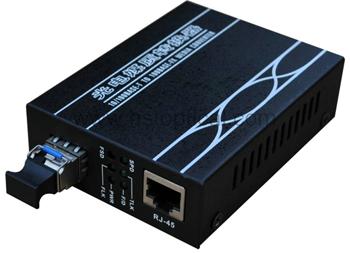

Fiber Optic Media Converter

We are offering fiber optic media converter.
1.10/100m media converter can be use between 100base-tx cable and 100base-fx fiber cable or 10base-t
cable and 10base-fl fiber cable for the data transmission usage,
2.suitable for intelligent community, it extend the network transmission from 100m to 2km. Also it can be realize
the interconnection between motherboard server, repeaters, hubs, switches, terminal.
3.plug and play design makes easy installation, no on-site adjustment, all the light, electricity interfaces are in
line with international standards, products applicable to different
harsh industrial environment
features:
1.card-type or stand-alone type for your choice; suitable for concentration management in 2u racks
2.broadcasting filtration function, automatic recognizing and modifying address with store-and-transmission
operational mechanism
3.cache size for 512kb, address table size is 4kb
4. Ethernet 10base-t or 100base - tx 100base - fx fiber media transition
5.supporting ieee802.3, ieee802.3u, ieee802.3x, ieee 802.3z/ab, ieee802.1d
6.supporting full duplex flow control or half duplex backpressure flow control, with auto negotiation function
7.electricity support 100mbps,10mbps, both ends can use different speed (full-duplex work bandwidth for line-speed 2xmbps)
8. Provide a link loss diagnosis, electric link and light links diagnosis, dynamic data transmission, full-duplex/half-duplex, speed indicator
9. Provide double rj - 45 electrical automatic cross connection, connect switchboard, concentrator
10.optical fiber interface properties is good, good compatibility and high reliability
11.provide complete after-sales service and five years for maintenance services
performances and features:
1. Intelligent transportation supervisory system(its)
3.large corporations, network security monitoring system, multi-function system
4.long-distance muti-media schooling, campus monitoring, long-distance broadcast television transmission system
ethernet features:
interface speed rate: 10/100mbit/s auto-adaptation, the default is 100mbps working condition
interface type: rj-45
transmit mode: ieee 802.3,ieee 802.3u,ieee 802.3x, store-and-forward process mode
doublet: 0-100m
supporting agreements: ieee802.3u 100base-tx, 10/100m
communication working format: full-duplex or half-duplex
environmental requirements:
operating temperature: 0 °c~+70 °c
storage temperature: -45 °c~+95 °c
relative humidity: 0~95% (non-condensing)
power voltage: ac85-260v/50hz
mtbf:≥10 hours
power supplier:2.5 w(input:dc5v 1000ma)
product certification:
ce, fcc, rohs, national certification
