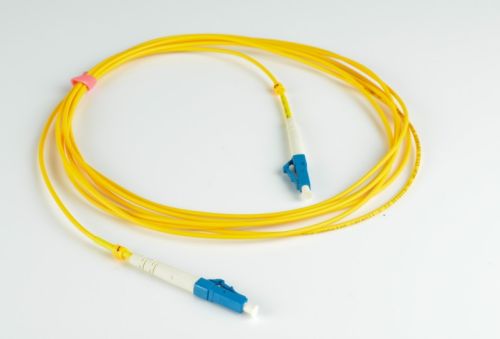

Contact SupplierWe are offering lc fiber-optic patch cord with low insertion loss, rohs directive-compliant.
Features:
low insertion loss
high return loss
nice exchangeability and durability
pc, upc and apc polishing
fiber types: sm, mm, om2 and om3
available in fiber bunchribbon fan out pig tails are available
available in various boot sizes
optional connector types: fc, sc, st, lc, mu, mtrj, d4, din, sma, e2000 and escon
rohs directive-compliant
specifications:
return loss:
pc: �45db
upc: �50db
apc: �65db
insertion loss: �0.2db (maximum �0.3db)
temperatures: -40 to 80â°c
repeatability: �0.1db
durability (1mating): �1000
interchange: �0.2
applications:
optic-fiber communication system
catv, metro and test equipment
telecommunication networks
local area networks
wide area networks
premise installations
data processing networks
