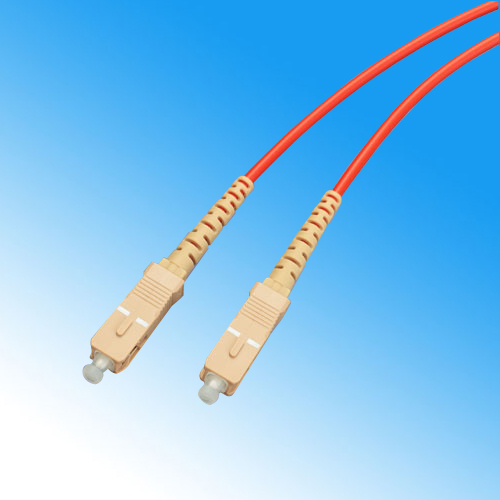

Fiber Optic Patch Cord

We are offering Sc Fiber Optic Patch Cord, Jumper, with optical connector
Standard: IEC, Telcordia GR-326-CORE
High return loss and low insertion lossPC/UPC/APC polishing
Diameter: � 0.9mm, � 2.0mm, � 0.3mm fiber is available
Single mode or multimode is availablePVC, 10G or LSZH cable is available
Excellent changeability and repeatability
Operating temperature range: -40 C_80 C
Storage temperature range: -40 C_80 C
Tensile strength: 100N
Features:
Low Insertion loss and high return loss
Small bending radius,excellent mechanical and environmental performance
Good exchangeability
Good durability
High temperature stability
Standard : Telcordia GR-326-CORE
Available :
Simplex/Duplex patch cord available
Fan-out available
Pigtail available
Various boot(cable) sizes available
FC/LC/SC/ST/MTRJ/MPO connectors available
LSZH and PVC cable
Applications:
Telecommunication
Computer Networks
CATV networks
Active device termination
Type SM MM
Polishing UPC APC PC
Insertion Loss Typical�0.2dB Maximum�0.3dB �0.3dB
Return Loss �50dB �60dB �35dB
Repeatability �0.2dB
Durability �0.2dB typical change,1000 matings
Interchangeability �0.2dB
Tensile strength �70N
Operation temperature -40� to +85� -40� to +85�.
