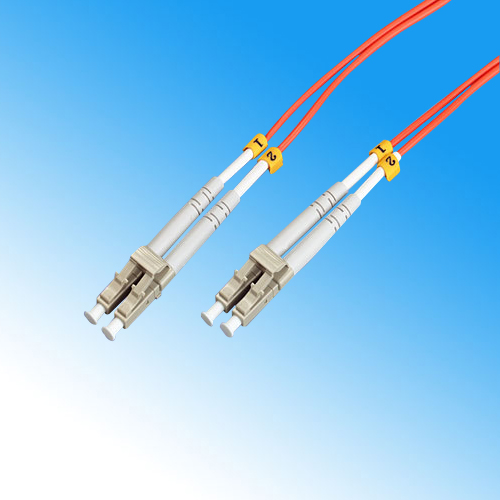

Fiber Optic Patch Cord

We are offering fiber optic patch cord cable, jumper, with optical connector
standard: iec, telcordia gr-326-core
high return loss and low insertion loss
pc/upc/apc polishing
diameter: ã� 0.9mm, ã� 2.0mm, ã� 0.3mm fiber is available
single mode or multimode is available
pvc, 10g or lszh cable is available
excellent changeability and repeatability
operating temperature range: -40 c_80 cs
torage temperature range: -40 c_80 c
tensile strength: 100n
features:
low insertion loss and high return loss
small bending radius,excellent mechanical and environmental performance
good exchangeability
good durability
high temperature stability
standard : telcordia gr-326-core
available :
simplex/duplex patch cord available
fan-out available
pigtail available
various boot(cable) sizes available
fc/lc/sc/st/mtrj/mpo connectors available
lszh and pvc cable
applications:
telecommunication
computer networks
catv networks
active device termination
type sm mm
polishing upc apc pc
insertion loss typical�0.2db maximum�0.3db �0.3db
return loss �50db �60db �35db
repeatability �0.2db
durability �0.2db typical change,1000 matings
interchangeability �0.2db
tensile strength �70n
operation temperature -40� to +85� -40� to +85�.
