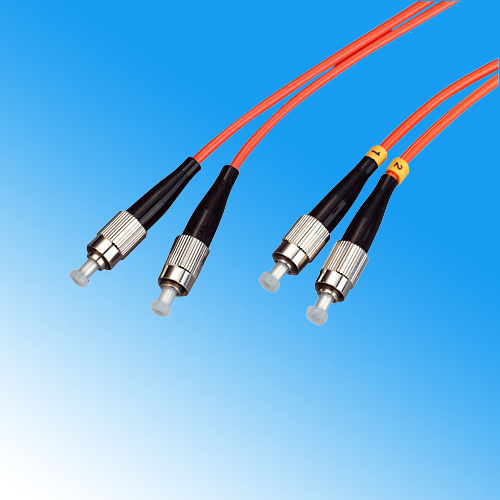

Fiber Optic Patch Cord

We offer Fc Fiber Optic Patch Cord, Jumper, with optical connector
Standard: IEC, Telcordia GR-326-CORE
High return loss and low insertion loss
PC/UPC/APC polishing
Diameter: Ø 0.9mm, Ø 2.0mm, Ø 0.3mm fiber is available
Single mode or multimode is available
PVC, 10G or LSZH cable is available
Excellent changeability and repeatability
Operating temperature range: -40 C_80 C
Storage temperature range: -40 C_80 C
Tensile strength: 100N
Type SM MM
Polishing UPC APC PC
Insertion Loss Typical≤0.2dB Maximum≤0.3dB ≤0.3dB
Return Loss ≥50dB ≥60dB ≥35dB
Repeatability ≤0.2dB
Durability ≤0.2dB typical change,1000 matings
Interchangeability ≤0.2dB
Tensile strength ≥70N
Operation temperature -40℃ to +85℃ -40℃ to +85℃.
