Samwell Fiber Optic Pigtail

We are offering fiber optic pigtail. Ribbon multi-fiber pigtail
name ribbon multi-fiber pigtail
details
fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other.

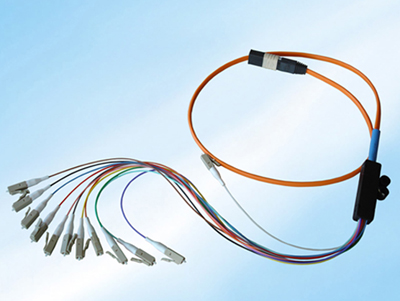

ribbon multi-fiber pigtail
features:
4, 6, 8, 12, 24, 48 fibers optional
with a fan out kit at the junction of fibers
the fiber is flat type.
Applicable connector: fc, sc, st, lc�
cable material: pvc, om1, om2 or om3 optional
single mode or multi mode
cable size: î¦ 0.9mm, î¦2.0mm, î¦3.0mm
application:
test equipment
optical catv & lan
telecommunication networks
optical communication networks
parameter:
parameter unit ribbon multi-fiber connector
sm
pc upc apc
insertion loss (typical) db �0.3 �0.2 �0.3
return loss db �45 �50 �60
operating wavelength nm 1310, 1510
exchangeability db �0.2
vibration db �0.2
operating temperature � -40~75
storage temperature � -45~85
cord diameter mm ï�3.0,ï�2.0,ï�0.9
fiber count f 4, 6, 8, 12, 24, � fibers
applicable connector fc, sc, st, mu, lc
