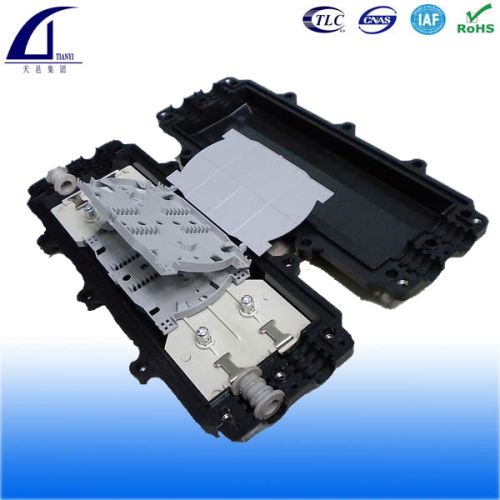

Fiber Optic Splice Closure, Brand Name : Tianyi

We are offering fiber optic splice closure.
•suitable for aerial, cable duct, direct buried, pedestal and well applications
•easy installation with no special tool required
•re-enterable with no re-entry kit needed
•high compressive strength
•chemical resistant
•suitable for ribbon and non-ribbon fibers
•reliable gasket sealing
standards:
•specification of fiber optic outdoor splice closure no. Yd/t814.1-2004 by mii
•specific rules for compulsory certification of distribution equipment (vd.3)
fiber optic splicer applications:
•suitable for ribbon and non-ribbon fibers
•aerial, duct, direct burial, and well
•trunk lines
•access networks
main technical parameters
· applicable environment temperatures: -10°c~+70°c
· air pressure: 70~106kpa
· pull-out strength≥1000n, compressive force to shell≥2000n , impact: 16n.m
· bending force to fiber cable: 150n (±45°), torsion force to fiber cable: 30n.m (±90°)
· tightness: no pressure drop within the enclosure pressurized to 60kpa at 70°c for 100 hours
· insulation resistance≥2×104mω,resistance to 1.5kv/min without break down
· life expectancy: 25 years
remarks:
the ribbon fiber cable has 12 cores each ribbon. If the user use 8 cores, 6 cores and 4 cores ribbon cable, the nos. Of ribbon cables can be added on the condition that installation can be managed easily.
