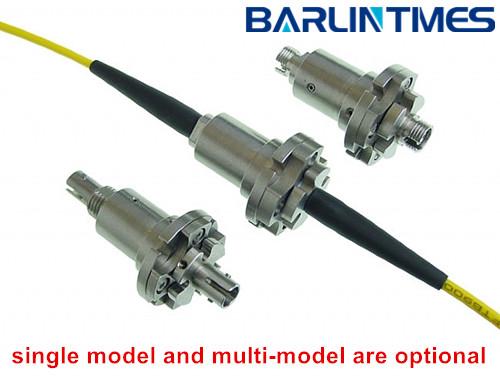

Fiber Optical Rotary Joint, Brand Name : Barlin Times

We are offering This type of rotary joint adopt fiber as a data transmission media that provide excellent technical rotary solution for specific customers. Fiber optical rotary joint can improve mechanical properties, simplifying system operation to avoid damage of fiber during operation. Also it could be combined with traditional electrical slip ring to make hybrid rotary joint to transfer power, high speed data and video signal.
Feature:
1.Full sealed structure
2.Compact size and package
3.High return loss and low crosstalk
4.High speed data transmission and low resistance
5.Custom solution available
Option:
1.Single mode or Multi-model
2.Single channel design or Multi-channel design
3.Electrical slip ring with FORJ combination
4.Operating in harsh and high shock environment
5.Integrated power channel and signal channel
6.Fiber wavelength & fiber type
7.Connector type & fiber cable length
Application:
1.Robotics
2.Fiber optical cable reels
3.Medical equipment
4.Video surveillance system
5.High speed transmission system
6.Marine propulsion system
FORJ-01
Specification Value
Channel 1
Operating Speed 0-2000rpm
Wavelength Range 1310850nm(MM), 15501310(SM)
Fiber Type SMMM
Connector Type FCSCSTSMLC
Pulling Strength 12N
Housing Materials Stainless Steel
Package Style Pigtails on both side
Protection IP54 or higher
Remarks: Other specific requirements, please feel free to contact with us.
