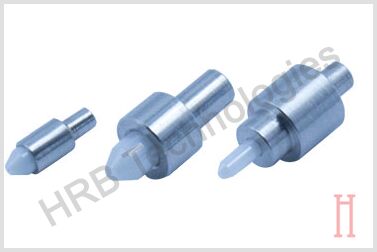

FIBER PIGTAILS FOR ACTIVE DEVICES

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Applications Optical performance 100% factory tested Customized assemblies available Precision ceramic ferrule with end-face geometry Environmentally stable Features Optical Module(LD,PD) Passive Device Active device

Company Information

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Specification

Characteristics	Type 1	Type 2	Type 3	Type 4	Type 5	other
Total Length(mm)	7	10	10	12	12	Customized
Front-end Length(mm)	5.5	8.5	7	9.5	7
Outer Diameter(mm)	2	1.95	2.5	2.45	2.5
Ferrule Diameter(mm)	1.25	1.25	1.25	1.25	1.25
Ferrule pop out Length	0.50mm, 0.75mm or Customized
Ferrule polishing angle	4°,6°,8°,10°,12° and so on
