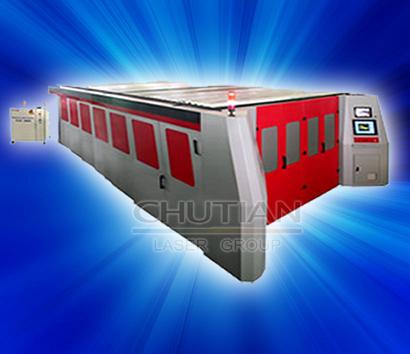

FIBER-PLUS Series 2D High Power Laser Cutting Machine

We offer laser cutting machine.
FIBER-PLUS Series 2D high power laser cutting machine is equipped with IPG fiber laser source suitable for providing additional high speed in processing material with thin & medium level thickness.
Double servo motor drive;
High stability, high speed & acceleration;
Fully digital CNC-servo motor communication;
New ALFACONTROL operating software developed by mother company El.En. Italy;
New fully accessible enclosure with 3-sides-accessibility;
New hydraulic lifter for pallet exchange;
Possibility to be used with or without the pallet exchange;
Brand new 6020 Model with beam path compensation, pallet exchange, covering 6m Y-axis without repositioning
FIBER LASER SOURCE
High electro-optical efficiency;
Low maintenance cost;
Capability to cut Aluminum, Copper & Brass;
High performance on material thickness up to 4mm
Model FIBER-PLUS 3015 FIBER-PLUS 4020 FIBER-PLUS 6020
Operating Mode
CW/PW
Working area(mm) 3000mm×1500mm 4000mm×2000mm 6000mm×2000mm
Accuracy(mm)
±0.05
Rapid speed
120m/min
Maximum Acceleration
1G
Laser power option All models can eqipped with IPG laser source (1kW~2kW)
