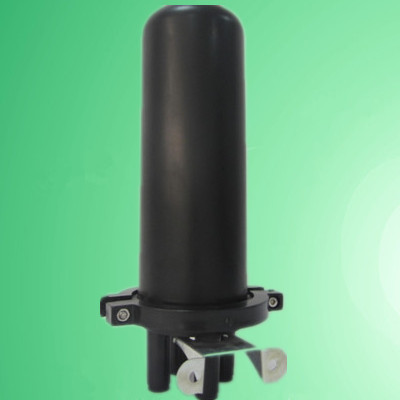

Contact SupplierWe offer fiber splice joint closure.
Details:
1.type:dome splice closure
2.material:pc material
3.installation method: wall-mounted, pole mounting,aerial,pipe-lined,manhole
4.our design achieves many patents
5.adopt engineering pc plastic with high-strength to make the closure have longer service life-span and excellent sealing performance.
6.it can lay the splitter and pigtail in advance, just only need join the cable. It will save. The installation time at outside and improve work efficiently.
Technical parameter:
1.working temperature:-40 degrees centigrade~+70 degrees centigrade
2.atmospheric pressure:70~150kpa
3.axial tension:>2000n/1min
4.stretching resistance:2500n/10 square centimetre(1min)
5.insulation resistance:>2*104mω
6.voltage strength:15kv/1min, no arcover or breakdown
7.pressure in the water:50m/72hours
8.splice tray with optical taking-in radius:≥40mm. Low optical loss
