Product Features
·Rated Voltage:300V
·Rated temperature:-60'C to +150'C

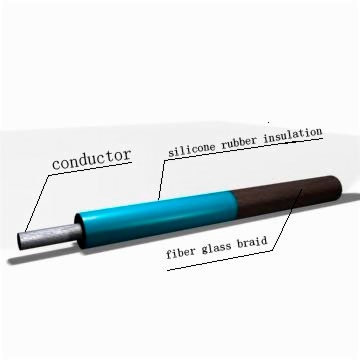

·Conductor: tin-coated, nickel-coated or silver-coated copper wire
·Insulator: silicone rubber
·Applicable for high temperature environment such as electron, electrical household appliance, lamps and lanterns, combustion equipment
Wire Lettering:
UL AWM3068 26AWG- 16AWG 150'C 300V CUL AWM I A 150'C 300V FT2
Items
Technical datas
Applied standard
Outer appearance
Smooth, even, without loose
UL 758
UL 62
UL 1581
Spark test
AC3KV/ 0.15 S
Vol. test
2 KV/1 min
Insulation resistance
>30.5MOhm.KM
mechanical properties of insulation material
Before aging
Tensile strength
>3.45N/mm²
elongation at break
>100%
After aging
Tensile strength
60% of the tensile strength
before aging
(158±1'Cx 1440h)
elongation at break
25% of the elongation before aging
Poisonous substance control
Comply with ROHS rule
EU-2002/95/EC
