136tex Fiberglass Cloth, Brand Name : Elley, Technics : 200gsm

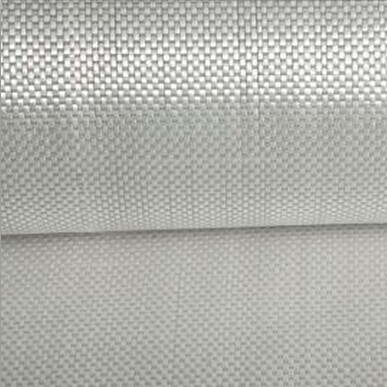

E-glass fiber fabric cloth sheet woven roving
1.usage
e-glass fiber fabric (thin fabrics with thickness from 0.025 to 0.5mm) is suitable for electrical isolation mica product, wax cloth as the reinforcement materials.
2. Feature
warp and weft yarns are parallel arrangement as flat situation, with uniform tension;
fiber is aligned with large consistency, stable and easy operation;
good moldability, fast and complete wet out in resins, resulting in high productivity;
good transparency and high strength of composite products.
Mark fiber consistency(ends cm)
area weight (gm 2 )
thick-ness (mm)
width (cm)
length (mm) breaking strength(n)ã�â¢ã¯â¿â½ã�â¥
warp direction weft direction warp direction weft direction
ew200 16 12 200ã��ã�â±20 0.2 90-130 300-1200 980 980
ew210 16 12 200ã��ã�â±20 0.21 90-130 300-1200 1080 1080
ew360 3.2 1.8 354ã��ã�â±18 0.35 50-300 100 2000 2000
ew280 16 10 280ã��ã�â±28 0.26 90-130 300-1200 1800 1800
ew300 14 10 320ã��ã�â±32 0.3 90-130 300-1200 1500 1500
ew430 20 12 420ã��ã�â±42 0.43 90-130 300-1200 2000 2000
ew136 10 10 136ã��ã�â±13 0.136 100 200 850 850
ew200 8 7 200ã��ã�â±20 0.21 100 200 1200 1200
