Fiberglass Grating

We are offering fiberglass grating. Detailed descriptions of fiberglass grating of its classification, features and applications
fiberglass grating also known as fiberglass geogrid, geotextile fabric, is a kind of new model material for reinforcement of road surface and bases.
in processing bituminous pavement reflection crack application, it has become an irreplaceable material. The product is adopted by international advanced warp technology using the high strength alkali-free fiberglass as basic material into a mesh and the surface coated. It offers high tensile strength in vertical and horizontal direction, low elongation, high temperature resistance, low cold resistance, ageing resistance, good corrosion resistance performance properties. Therefore the fiberglass grating is widely used in asphalt pavements, cement pavement and enhanced railway subgrade slope protection of roadbed and embankments, airport runways, etc.
our fiberglass grating products can be divided into molded fiberglass grating and pultruded fiberglass grating according to its applications.
molded fiberglass gratings are designed to provide the ultimate in corrosion resistance and performance even under the extremely demanding conditions, excellent alternative to metal grating that always has the problems of rust, corrosion, or chemical attack. And they are also cheaper than using metal.
features of molded fiberglass grating
chemical resistance
impact resistance
fire retardant
non-skid resistance
low maintenance
lighter than steel
cost competitiveness
and it also has other positive features include electrically and thermally non-conductive, easy to cut and install, uv resistance.
Currently, our molded gratings are used in: chemical processing, food and beverage, marine, oil and gas, power, industry, buildings, construction, pharmaceutical, metals and mining, pulp and paper, recreation, telecommunications, shipping, transportation, water and waste treatment, architectural.
molded fiberglass grating specifications
item no. height( mm) mesh size( mm) standard panel sizes
( mm) bar thickness
( top/bottom-mm) open area ( %) weight ( kg/�o)
1 13 50.8��50.8 3660��1220 6.4/5.4 76 5.5
2 15 25.4��25.4 / 50.8��50.8 3660��1220 6.2/5 57 7.2
3 15 38.1��38.1 3660��1220 6.3/5.2 69 6.5
4 15 20��20 / 40��40 4047��1247 6.35/5.3 47 11.5
5 20 38.1��38.1 3665��1225 6.3/5 69 9.3
6 20 12.8��12.8��12.8 / 38.5��38.5 3434��970 7.2/6.4 27 18.5
7 25 38.1��38.1 3665��1225 6.35/5 69 12.3
8 25 40��40 4047��1247 6.4/5 70 12.2
9 25 19��19 / 38��38 4005��1220 6.4/5 44 15.5
10 25 25��100( bearing bars to run width direction) 3007��1009 9.4 / 8(length)
6.4 / 5(width) 67 13.8
11 25 25.4��101.6( bearing bars to run width direction) 3660��1220 7/5 67 13.0
12 25 101.6��25.4( bearing bars to run width direction) 3665��1225 7/5 67 13.1
13 30 38.1��38.1 4008��1525 6.6/5 68 14.6
14 30 40��40 4047��1247 6.6/5 69 14.2
15 30 20��20 / 40��40 4047��1247 7/5 42 18.1
16 30 12.7��12.7��12.7 / 38��38 4040��1220 7/5 30 23.5
17 30 26��26 / 52��52 4011��1150 6.5/5 56 13.6
18 38 38.1��38.1 3969��1525 7/5 66 19.2
19 38 40��40 4047��1247 7/5 67 18.8
20 38 152.4��25.4( bearing bars to run length direction) 3665��1225 7 / 5(length)
9 / 7(width) 68 20.4
21 38 101.6��38.1( bearing bars to run length direction) 3660��1220 7/5 76 14.5
22 38 19��19 / 38.1��38.1 4045��1220 7/5 40 23.5
23 38 20��20 / 40��40 4047��1247 7/5 42 22
24 40 40��40 4047��1247 7/5 67 20.0
25 40 220��60 2207��1507 7/5 85 9.5
26 40 20��20 / 40��40 4047��1247 7/5 42 23.7
27 50 50.7��50.7 3660��1225 8.3/5 69 21.5
28 50 50.7��50.7 3660��1225 8.8/5 68 23.5
29 50 25.35��25.35 / 50.7��50.7 3660��1220 8/6 47 26.0
30 50 152.4��38.1( bearing bars to run length direction) 3660��1220 9/7 72 20.8
31 50 38.1��38.1 3665��1225 11.5/9 48 40.5
32 63 38.1��38.1 3660��1220 9/5.8 58 38.5
33 63 38.1��38.1 3670��1230 12/9 46 52.0

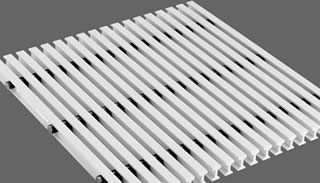

pultruded fiberglass grating
pultruded fiberglass grating is made of pultruded shape ��i�� or ��l�� high strength grate that has good performs in corrosive environment or where a lightweight grating is preferable.
The raw materials of the product are flexible textile reinforcing fibers and a liquid resin mixture. During the pultrusion process the raw materials are pulled through a heated steel forming die using a continuous pulling device.
features and benefits of pultruded fiberglass grating
corrosion resistance
long service life
low maintenance
light weight
easy to fabricate
high fiberglass content for greater impact resistance
applications of pultruded fiberglass grating
our pultruded grating can be used in chemical plants due to its excellent corrosion resistance. It is widely used in operation platform, oil storage tanks, power distribution boards and rooms, also can be used as walkways wash rocks.
specifications of pultruded grating
item no. height ( mm) type standard panel size( mm) open area ( %) weight( kg/�o)
1 25 t4025 width: 915, 1220 length: 2440, 3050, 3660, 6100 40 12.0
2 25 t5025 width: 915, 1220 length: 2440, 3050, 3660, 6100 50 10.5
3 25 t6025 width: 915, 1220 length: 2440, 3050, 3660, 6100 60 8.5
4 25 i4025 width: 915, 1220 length: 2440, 3050, 3660, 6100 40 16.0
5 25 i5025 width: 915, 1220 length: 2440, 3050, 3660, 6100 50 13.4
6 25 i6025 width: 915, 1220 length: 2440, 3050, 3660, 6100 60 10.8
7 30 i4030 width: 915, 1220 length: 2440, 3050, 3660, 6100 40 20.1
8 30 i5030 width: 915, 1220 length: 2440, 3050, 3660, 6100 50 17.0
9 30 i6030 width: 915, 1220 length: 2440, 3050, 3660, 6100 60 14.1
10 38 i4038 width: 915, 1220 length: 2440, 3050, 3660, 6100 40 26.5
11 38 i5038 width: 915, 1220 length: 2440, 3050, 3660, 6100 50 22.3
12 38 i6038 width: 915, 1220 length: 2440, 3050, 3660, 6100 60 18.1
13 50 t5050 width: 915, 1220 length: 2440, 3050, 3660, 6100 50 22.6
14 50 t3350 width: 915, 1220 length: 2440, 3050, 3660, 6100 33 17.4
15 76 t5076 width: 915, 1220 length: 2440, 3050, 3660, 6100 50 24.5
16 76 t3376 width: 915, 1220 length: 2440, 3050, 3660, 6100 33 30.0
if you need to consult the price, please contact the business department by e-mail:
when you contact us, please provide your detail requirements.
That will help us give you a valid quotation.
