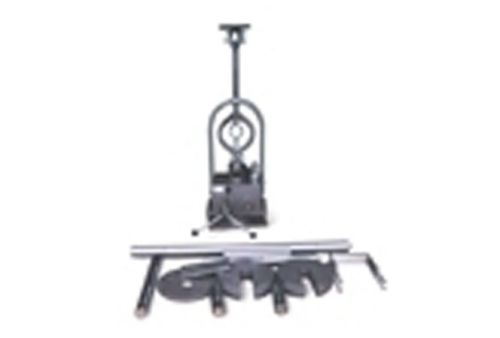

FIELD TYPE C.B.R. APPARATUS

Sold By : EIE Instruments Pvt. Ltd

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

Mechanical screw loading jack, 10,000 Kg. Capacity with U-bracket and swivel head. Penetration piston, 50mm dia threaded at the upper end. Extension rods set consisting of length 50cm, and 1 length 100cm., used as spacers between the proving ring and penetration piston. The lengths are machined from steel tubing.

Connector set, has eight connectors for coupling the penetration piston and proving ring assembly either directly or through extension pieces.

Dial gauge support of seamless pipe construction. It stands 30cm high and 45cm wide at the base. Provided with a quick release screw type clamp capable of sliding and locking anywhere along 2 meter length of the bridge. Supplied with annular metal weight 5Kg. 250mm dia with 53mm dia central hole, slotted metal weight 5 Kg, 215mm to 250mm dia with 53mm dia slot, 3 Nos, Slotted metal weight, 10Kg, 215mm to 250mm dia with 53mm dia slot. 2Nos.

Optional Accessories :

1Dial gauge 0.01mm X 25mm travel.
High sensitivity proving ring, Cap.5000 kg in a nice case. With our own calibration certificate Each
