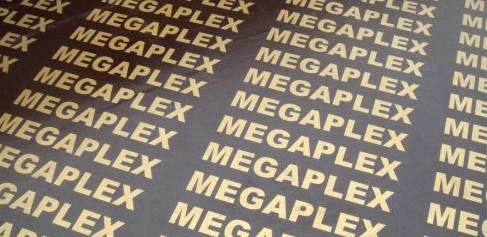

We bring forth premium quality Film Faced Plywood in the market. Widely used for shuttering, concrete form, building construction purpose etc., our Film Faced Plywood has weather and boil proof glue on it. Edges of Film Faced Plywood are painted with water resistant paint. Known for its high strength, our Film Faced Plywood is available at market leading prices for the clients.
Manufacturing Process : The best wood is cut in layers which are then felted and 2 times hot pressed to form sheets. The primary bond derived from the felting and inherent adhesive properties of the fibers.
Specification :
| Models | Megaplex (18mm) | Megaplex (12mm) | Gulf Plex(18mm) | Darbuildplex (19mm) |
|---|---|---|---|---|
Layers | 11 | 7 | 11 | 11 |
Film | Phenolic | Phenolic | Phenolic | Phenolic |
Glue | WBP | WBP | Melamine | WBP |
Weight (approx.) | 19kgs + 1kg | 25kg + 1kg | 22kgs + 1kg | 22kgs + 1kg |
Thickness Tolerance | 17.50mm + 0.50mm | 11.50mm + 0.50mm | 17.00mm + 0.70mm | 17.50mm+0.50mm |
Hot Process | 2 times | 2 times | 2 times | 2 times |
Packing | Bundles of 50 Pcs/loose | Bundles of 75 pcs/loose | Bundles of 50 Pcs/loose | Bundles of 50 Pcs/loose |
Properties
Property | Unit | Standard value | |
|---|---|---|---|
Moisture content | % | 8-12 | |
Density | kg/m3 | >550 | |
Bonding Quality | Bonding quality | Mpa | >1.0 |
Damage rate | % | ---- | |
Bending Modulus of elasticity | Longitudinal | Mpa | >5000 |
Lateral | Mpa | >4000 | |
Bending Strength N/mm2 | Longitudinal | Mpa | >24 |
Lateral | Mpa | >20 | |
Standard : EN322, EN310, EN314-1.EN326 | |||
