Contact SupplierFeatures

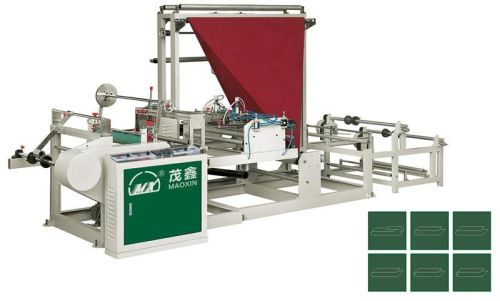

* Suitable for folding and side sealing BOPP、CPP、POF、PE etc. * Function:*.OPP header bag by ultrasonic embossing device *.Side sealing device by pneumatic control *.Bottom Gusset、Adhesive tape device *.E.P.C automatic control for unwinding,Tension control *.Winding device adopts magnetic powder clutch tension control. * Main motor use Taiwan frequency converter speed control. Pneumatic shaft is optional on demand. Main Technical Parameters:Design and specifications are subject to change without notice.
Model MXCD-1200 MXCD-1400 MXCD-1600
Max.width of bag making 600(max) 700mm(max) 800mm(max)
Diameter of unwinding roll(mm) φ600 φ600 φ600
Diameter of winding roll(mm) φ500 φ500 φ500
Max speed of the machine 80mmin 80mmin 80mmin
Power Required(KW) 2 2.1 2.2
Machine Size(M) 3×1.4×1.7 3.2×1.5×1.7 3.4×1.6×1.8
