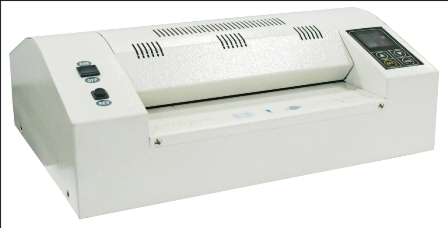

Film Laminator

We are offering film laminator
1. usage: transfer photoreceptive film to the copper-clad board through heating;
2. film laminating speed: 200~1600mm/min set transferring speed and temperature according to different plate thickness;
3. maximum film laminating width: 330mm;
4. working voltage: 220v/50hz;
5. heating tube power: 1200w;
6. heating mode: 8 inner-heating silicon rollers;
7. temperature rising time: 10min;
8. control system: embedded processor + pid control, man-machine interface: lcd screen + touch screen;
9. heating system: plastic roller inner heating technology, higher heating efficiency, more security system to ensure the process quality;
10. film laminating temperature: 40-180°c;
11. overall dimension: 450mm×600mm×350mm;
12. weight: 50kg.
