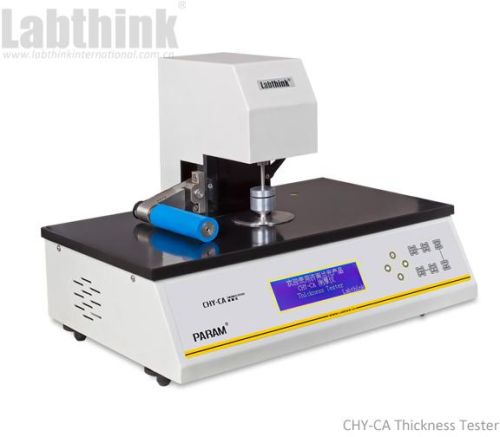

Film Thickness Tester

Chy- ca film thickness tester is designed based on the mechanical contacting method, which effectively ensures standard and accurate test data and applicable to thickness test of plastic films, sheets, diaphragms, high accuracy paper and paper board thickness measure tool.
Chy- ca film thickness tester has below features:
contact area and pressure are strictly designed according to standard requirements, while customization is also available
automatic lifting presser foot facilitates to minimize system errors that caused by human factors during the test
manual or automatic operating mode for convenient test
automatic specimen feeding, specimen feeding interval, number of testing points and specimen feeding speed could be preset by the user.
Specifications:
test range 0~2 mm (standard)
0~6 mm, 12 mm (optional)
resolution 0.1 μm
test speed 10 timesmin (adjustable)
test pressure 17.5±1 kpa (film)
50±1 kpa (paper)
contact area 50 mm2 (film)
200 mm2 (paper)
note: select one presser foot for film or paper; customization is available
specimen feeding interval 0 ~ 1000 mm
specimen feeding speed 0.1 ~ 99.9 mms
instrument dimension 461 mm (l) x 334 mm (w) x 357 mm (h)
power supply ac 220v 50hz
net weight 32 kg
