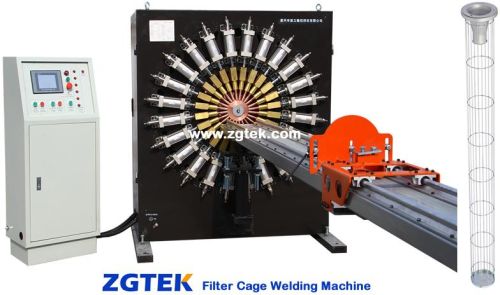

CNC steel Filter Cage Welding Machine, Brand Name : ZGTEK

We are offering filter cage welding machine.
◦model: dln-24-5
◦cage wire quantity: 81012141618202224
◦ring space: can be set at any value
◦cage outer diameter: 100-200mm
◦rail length: standard 7m, up to 10m can be customized
◦input voltage: 380v(2-phase) or customized
◦power frequency: 5060hz
◦designed max capacity of transformers: 80kva
◦instant power in sync mode: 36kva
◦instant power in async(time-sharing) mode: 18kva
◦transformers: 2sets
◦air pressure: 0.6-0.8mpa
◦required ir flow: 300lmin
◦cooling method: natural cooling
◦weight: about 1000kg
features
◦very high welding speed, e.g. For a 12-wire cage, one ring takes only 0.18s
◦automatic cage pulling, ring space can be set in the program through the user-friendly interface.
◦the cage pulling carriage is equipped with bearings, runs on the rail with linear guides, it's smooth and precise
◦function of bad weld detection and auto re-welding
