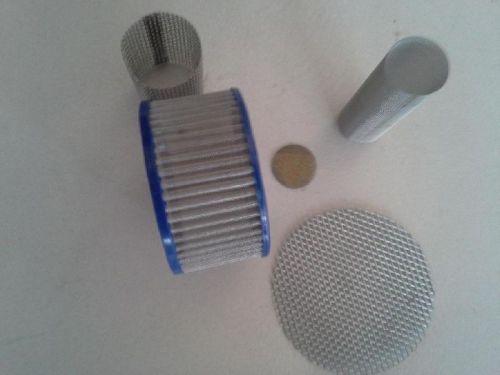

Filter Discs

Filter disc, also named wire mesh filter disc, screen filter disc, is made of metal wire mesh, such as galvanized wire mesh, phosphor bronze wire mesh, stainless steel wire mesh, black iron cloth. The operation principle of filter discs is to separate or screen one substance from another. Thus, you can remove unwanted contaminants from fluid, air, or solid. We offer filters of different materials, different shapes, different layers, different weaving methods, different wrapping edge materials, different filter precision, etc. The overall dimensions can be produced to satisfy your specific requirements, such as filter particles size, flow rate, contact liquid, physical space limitations.
Filter disc materials: black wire, stainless steel wire, copper wire, phosphor bronze wire, brass wire, galvanized steel wire, aluminum wire, etc.
Wire diameters: 0.01 - 6.00 mm.
Disc diameters: 5 mm - 600 mm (custom size: 8 mm - 3800 mm).
Disc shapes: round (diameter 44 - 600 mm), ring (inner diameter 18 - 250 mm, outer diameter 50 - 350 mm), rectangular (length 60 mm - 400 mm, width 50 mm - 100 mm), crescent, semicircle, square, oval, abnormal shape, etc.
Weaving types: plain weave, twilled weave, dutch weave, plain dutch, twilled dutch, etc.
Layers: single layer or multiple layers.
Edge processing methods: spot welding, wrapping edge or no edge processing.
Marginal materials: stainless steel, copper, aluminum, rubber, etc.
Filter precision: 0.1 - 300 μm
