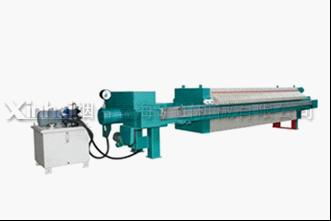

Filter Press, Power : 1-3kw

We are offering filter press. Introduction
filter press consists of a series of filter chambers formed between square, rectangular or round filter plates supported on a metal frame. it is suitable for concentrate filtration and dry discharge of tailings, the particle size can be up to 500 meshes.
features
automatic high-pressure membrane squeezing.
automatic filter cloth washing，filtrate collecting and plate-reversing.
automatic open and close of valves.
automatic startup and stop the pumps.
multiple material feeding, pressure detection and temperature controlling.
application
filter press is suitable for concentrate filtration and dry discharge of tailings, the particle size can be up to 500 meshes.
Working principle
once the filter chambers are clamped, the filter press is loaded with slurry. The plates on the filter press are clamped together with hydraulic rams that generate pressures typically in the region of 3000 pounds per square inch. In addition to the filter plate filtration medium, the growing filter cake enhances removal of fine particles in the slurry. The solution coming through the filter press water bibs will be pure. The filtrate can be drained away for safe disposal, or it can be kept in a water tank for recycled use. At the end of filtration, the solid filter cake can be removed.
technical parameters
model filtering area(㎡) number of the filter cells specifications of the filter box filtering sample thickness(mm) filter cell volume(m³) filtration pressure(mpa) anchor center(mm) external dimensions(l×w×h） (mm) motor power(kw) weight(kg)
xmaz800u 20 20 800×800×55 25 0.239 0.5 2265 3215×1320×1160 2.2 2073
xmaz800u 30 30 0.365 0.8 2815 3765×1320×1160 3090
xmaz800u 40 40 0.491 0.8 3365 4315×1320×1160 3380
xmaz800u 50 50 0.617 1 3915 4865×1320×1160 3090
xmaz800u 60 60 0.743 4465 5415×1320×1160 4070
xmaz800u 70 70 0.869 1.6 5015 5965×1320×1160 4360
xmaz800u 80 80 0.995 5565 6515×1320×1160 4700
xmaz1000u 100 62 1000×1000×60 30 1.48 0.5-1.6 5020 6110×1460×1360 3 6200
xmaz1000u 120 75 1.8 5800 6890×1460×1360 6710
xmaz1250u 150 58 1250×1250×65 2.26 5390 6920×1850×1620 11800
xmaz1250u 180 69 2.7 6100 7630×1850×1620 12700
xmaz1250u 200 79 3.02 6620 8150×1850×1620 13300
xmaz1250u 220 84 3.29 7080 8610×1850×1620 13900
xmaz1250u 250 95 3.73 7290 9320×1850×1620 14800
xmaz1500u 300 77 1500×1500×70 32 4.76 0.7-1.6 7450 9100×1960×1780 5.5 27000
xmaz1500u 320 83 5.14 7870 9520×1960×1780 27690
xmaz1500u 340 88 5.45 8220 9870×1960×1780 28380
xmaz1500u 350 90 1500×1500×70 5.58 8360 10010×1960×1780 28730
xmaz1500u 380 98 6.08 8920 10570×1960×1780 29760
xmaz1500u 400 103 6.39 9270 10920×1960×1780 30450
xmaz1500u 450 116 7.21 10180 11830×1960×1780 32170
xmaz1500u 500 128 7.96 11020 12670×1960×1780 33890
