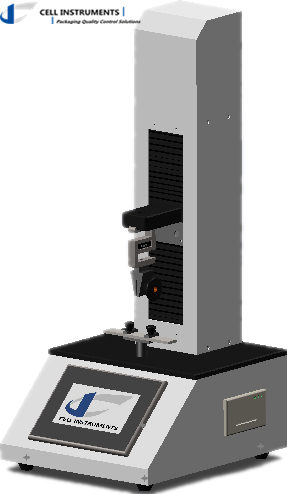

FINAT 9 Loop Tack Tester, Brand Name : cell Instruments

finat 9 loop tack tester measures the sticking force, adhesiveness and tack of adhesive, tape and label etc.
finat 9 loop tack tester complies with the following test methods:
finat(finat test method no. 9: loop tack measurement)
pstc-16 loop tack
astm d6195 standard test methods for loop tack
finat 9 loop tack tester principle
a strip sample of 25mm wide and 175mm long is formed into a loop and brought into contact with a glass plate at 300mmmin. immediately after the contact, the loop is withdrawn at 300mmmin and the maximum force to separate the loop from the glass plate is recorded, which is referred to as loop tack.
technical features
1. 7 inch tft touch screen operation (human machine interface)
2. plc control unit is equipped for stable performance
3. precision ball screw for accurate speed & displacement.
4. test speed is adjustable.
5. dual movement
6. limiting device and automatic returning
7. microprinter
parameters
test range 200n ( or other range)
speed range 1-500 mmm
stroke 350mm
dimension (mm) 400(l)×340(w)×800(h)
sample size 125mm*25mm
test plate size 150mm*25mm
power ac 220v 50hz
