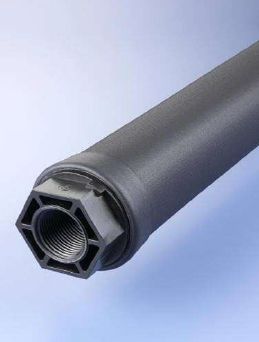

Jaeger Fine Bubble Tube Diffuser, Color : Grey

Salient Feature

•  Dia of 65 mm and 90 mm with slits of 1 to 1.25 mm
•  Effective Length of 1000 mm

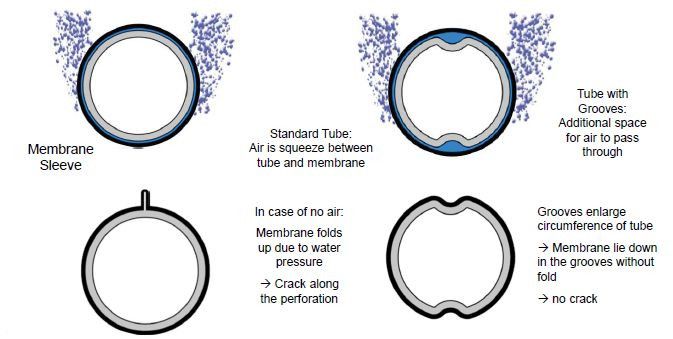

•  Two grooved design to reduce pressure drop and
•  Coverage area of 1.5 sq mt for 65 mm and 2.0 sq mt for 90 mm
•  Design Air Flow up to 8 Nm3/hr for 65 mm and 12 Nm3/hr for 90 mm,
•  High SOTE up to 7 % per meter depth
•  Connection size 1” BSPT

Application

For maintaining DO in aeration tan

Material

• Membrane in EPDM , Silicon Rubber as wellwq
•  Body in 20% Glass Filled PP
