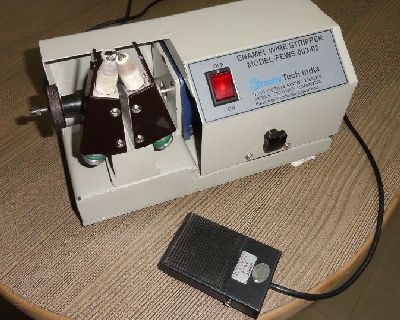

Fine Enamel Wire Stripper

The Fine Wire Enamel Stripper is designed for stripping miniature coils and fine magnet / enamel wire. The enamelled wire is introduced from above (or from the front) between the rotary, conical glass fibre wheels, the enamel is then removed from the wire.
The design of the wheels allows a visible method for making close stripping easier. With a knurled thumb screw the distance of the conical wheels can be stopped to suit the respective wire size.  In order to allow for stripping of different insulating enamel coatings, 2 types of wheels are available. Stripping to within 1/8" of a component body are possible with no restriction on stripping length.

Fine Magnet Wire Stripper will strip film type insulation including Forever, ML, enamel, varnish, isonel, and more from fine wires. The conical fiberglass wheels rotate at high speed to generate frictional heat which softens the insulation on the wire. The “nap” of the brush wipes this insulation away. The machines features a strip length stop which allows for consistent strip lengths, a dust take off port for environmental safety, and close-up multiple wire stripping capability. The unit also cleans and polishes leads of small electronic components and removes oxidation and other contaminants from leads as small as 0.0012” (.03mmø) diameter. We recommend use to determine which Trophy machine is best for your specific application.
Details :

• The Fine Enamel Wire Stripper strips all types of film insulation
• Fast & Easy to set up
• Wire Sizes from 0.03mm to 0.3mm
• Model : FEWS 003-03
• Wire Sizes : Maximum: 28SWG (0.33mmø) Minimum: 48SWG (0.030mm)
• Strip Length : 0 to infinity
• Close-Up Stripping : Within 1/8"-3/16" (3.2mm-4.76mm) depending on size of coil body
• Component Lead Diameter : 0.0012”-0.013” (.03mm-0.33mm)
• Component Lead Lengths : Infinite-will clean to within 1/8” (3.2mm) of component body
• Power : 120V 60 Hz
