we specially in exporting edm graphite, high purity graphite, mechanical carbon, graphite crucible, graphite electrodes, graphite launder, etc.
herewith please find our some typical graphite products which we have been exported and present producing as following for your reference:

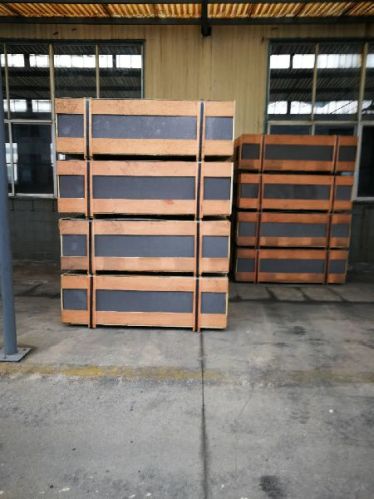

1.detailed structural graphite
grain size: 0.8mm with the density 1.68-1.72g/cm3 min. (extruded graphite)
max size mm | bulk density g/cm3 | specific electrical resistance μωm | bending pressure strength mpa | elastic modulus gpa | coefficient of thermal expansion 10-6/℃ | ash ％ |
0.8 | 1.72 min | 7.5 max | 22 min | 9.3 max | 2.9 max | 0.3 max |
0.8 | 1.68 min | 7.8 max | 19 min | 9.3 max | 2.9 max | 0.3 max |
size:
block: 650 x 400 x 1800mm 400 x 400 x 1800mm 500 x 500 x 1800mm, etc.
plate: 1 x 24 x 72”, 2.25 x 12.625 x 72”, 2x 12.375 x 72”, 2 x 14.4375 x 72”, etc.
extruded rods: dia.6”, 8”, 10”, 12”, 14, 16”
application:
1. Electrical discharge maching graphite, die casting moulds, coatings for metal.
2. Diamond sinter moulds.
3. Hermetical material.
4. Moulds for continuous casting
extruded rods: dia.6",8",10",12",14",16"
2. Stove head electrode
stove head electrode is mainly used in electrode graphitization furnace, carborundum melting stove, our products have the characters as low resistivity, high density, good performance of electric and thermal conduction, and good anti-oxidant; especially our 630 x 630 x 2200 mm stove head electrode used in longitudinal graphitization furnace has finished the history that can’t be produced at home.
index of stove head electrode
type | bulk density g/cm3 | max size mm | specific electrical resistance μωm | bending pressure strength mpa | elastic modulus gpa | coefficient of thermal expansion 10-6/℃ | ash ％ |
fcp | 1.58 min | 2.0 | 10.5 max | 18 min | 9.3 max | 2.9 max | 0.3 max |
fcg-1 | 1.68 min | 2.0 | 8.5 max | 21 min | 9.3 max | 2.9 max | 0.3 max |
specs: 400x400x1850mm
500x500x1950mm
630x630x2200mm
we can also receive the orders for special shaped products.
3.special-purpose graphite chemical industry equipment
grain size: 0.8/2.0mm with density 1.58g/cm3 min.
block: 400 x 400 x 1850mm 500 x 500 x 1950mm
rod: dia. 720 x 350mm dia. 1020 x 350mm
dia. 820 x 350mm dia. 1200 x 350mm
dia. 920 x 350mm dia. 1300 x 350mm
4. molded graphite
grain size: 0.08mm with the density 1.77g/cm3 –1.85g/cm3
bulk density g/cm3 (min.) |
specific electrical resistance μωm (max.) | porosity % (max.) |
compressive strength mpa (min.) | ash ％ (max.) |
average grain size (μm)
|
applycation
| |
1.77 | 12 | 22 | 55 | 0.1 | 80 | 1. Electrical discharge maching graphite, die casting moulds, coatings for metal. 2. Diamond sinter moulds. 3. Hermetical material. 4. Moulds for continuous casting. | |
1.80 | 10 | 18 | 65 | 0.1 | 80 | ||
1.85 | 10 | 17 | 72 | 0.1 | 80 |
|
size: rectangle: 200x200x65 (55、80) 、 300x200x120 (100) 、130x120x35、280x135x110、
300x135x110、310x310x150(140) 、390x130x100(80) 、330x260x120(150) 、
340x250x120、380x280x150(200) 、420x135x120(140) 、430x255x125(150) 、
430x125x125、450x200x150、490x300x180、500x400x200、650x210x150、
550x260x150、550x370x200、800x230x320mm
round: dia.60x100、dia.100x100、dia.110x180、dia.110x240、dia.125x240、dia.135x135、
dia.150x130、dia.160x240、dia.190x120、dia.210x240、dia.260x240、dia.305x260、
dia.330x240、dia.330x260、dia.320x300、dia.260x300、dia.400x300、dia.450x400mm
5. isostatic graphite
bulk density g/cm3 min. | electric conductivity μωm | compressive strength mpa | flexural strength mpa | shore hardness | ash content ppm | average granularity μm | coeficient of thermal expansion 10-6 / °c | young’s modulus gpa | conductivity thermal (kcal /mhc) | applications | |
1.85 | 11-13 | 80 | 40 | 55 | 500 | 25 | 4.5 | 11.5 | 120 min. | die casting moulds, plastic moulds, forge moulds edm. |
|
circular size: dia. 350x450mm, dia. 400x450mm, dia. 450x450mm, dia. 500x450mm, dia. 585x600mm
rectangle size: 400x400x400mm, 400x400x500mm, 400x400x600mm, 900x540x260mm
note: above usages are only reference for you.various specification and properties of isostatic graphite can be produced according to customer’s requirements.
all of above products are sold well in europe, usa, asia etc. With whom we have established long term & pleasant relationship based on reliable product and good service. We may also make the production accoridng to your request.
