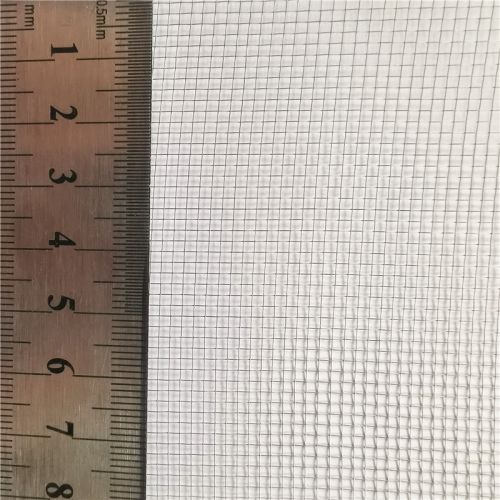

Customizable fine-pored Tungsten Wire Mesh, Brand Name : OFOLAN

Product Name: High-Temperature Tungsten Mesh | Shielded Tungsten Wire Mesh | Tungsten Wire Braided Mesh
Model: W1, HW61, HW91, etc.
Mesh Size: 5Mesh-200Mesh
Wire Diameter | Thickness: 0.5mm-0.03mm
Weaving Method: Plain Weave, Twill Weave
Density: 19.3 g/cm³
Melting Point: 3380 ℃

Characteristic:

The resistivity of tungsten wire mesh is 5.3 * 10^-8. It features a high melting point, high resistivity, good strength, low vapor pressure, as well as extremely high temperature resistance and creep resistance. The tungsten wire mesh and high-temperature tungsten mesh produced by Eu Fu Lang rare and precious alloy wire mesh have a smooth surface, uniform mesh, no broken wires or leaks, and can be stably used in harsh environments such as vacuum, high temperature, and high pressure.

Application:

Due to its high temperature resistance, tungsten mesh is commonly used as heating elements, heat treatment support meshes, electromagnetic shielding meshes, vacuum furnace heat treatment grids, RF electromagnetic shielding components, light wave filtering components, and corrosion-resistant structural components. It is also applied in heating elements, integrated circuits, gas filtration, aerospace, military, and other fields that operate in extremely high-temperature and high-pressure harsh environments.

The high-temperature tungsten mesh provided by Fulang Rare and Precious Alloy Wire Mesh Company has a purity of 99.95%, with a uniform surface mesh and no broken wires or loopholes. Its melting point is as high as 3380 ℃, offering extremely high temperature resistance.

In-stock specifications for high-temperature tungsten mesh and tungsten wire mesh include 6 mesh, 20 mesh, 30 mesh, 40 mesh, 60 mesh, 100 mesh, and 150 mesh tungsten wire mesh. Our company keeps tungsten wire mesh in stock all year round, which can meet small-batch orders from experimental units and urgent production schedules of large industrial units, saving you the high cost and long time required for separate customization. Special specifications can be customized for sample processing according to drawing requirements.
